LAX 100-NP

LEM USA, Inc.

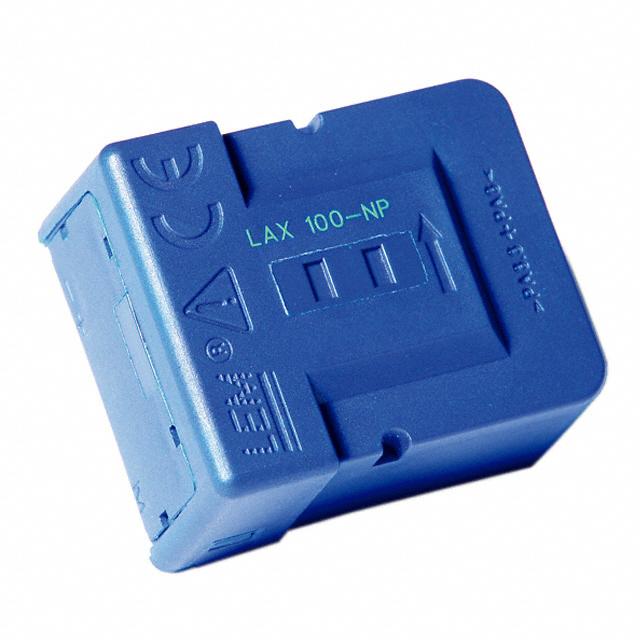

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LAX 100-NP
Manufacturer/Brand:	LEM USA, Inc.
Product description	SENSOR CURRENT HALL SELECTABLE
Datasheets:	LAX 100-NP.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4354 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4354 pcs

Reference Price (In US Dollars)

1 pcs: $7.843

5 pcs: $7.487

12 pcs: $6.773

36 pcs: $6.239

60 pcs: $5.526

108 pcs: $5.347

504 pcs: $4.991

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$7.843

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LAX 100-NP

Part Number	LAX 100-NP	Manufacturer	LEM USA, Inc.
Description	SENSOR CURRENT HALL SELECTABLE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4354 pcs	Data sheet	LAX 100-NP.pdf
Voltage - Supply	±11.4 V ~ 15.75 V	Series	LAX
Sensor Type	Hall Effect, Closed Loop	Sensitivity	0.5mA/A
Response Time	0.2µs	Polarization	Bidirectional
Packaging	Tube	Package / Case	-
Output	Ratiometric, Current	Other Names	398-1024-5 90.B7.34.000.0 LAX100NP
Operating Temperature	-40°C ~ 85°C	Number of Channels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Linearity	±0.1%	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency	DC ~ 300kHz	For Measuring	AC/DC
Detailed Description	Current Sensor 16.7A, 25A, 33.3A, 50A, 100A (Selectable) 1 Channel Hall Effect, Closed Loop Bidirectional	Current - Supply (Max)	62mA
Current - Sensing	16.7A, 25A, 33.3A, 50A, 100A (Selectable)	Accuracy	±0.91%
