PA-1101-18T3

Lite-On, Inc.Lite-On, Inc.

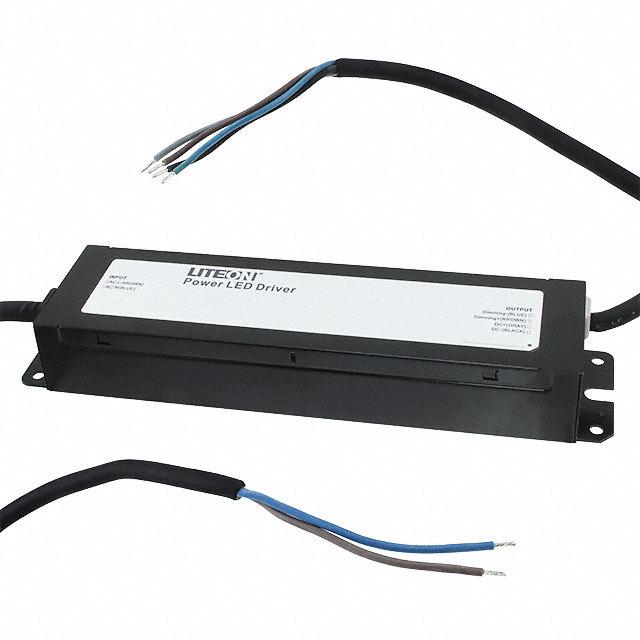

PA-1101-18T3 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: PA-1101-18T3
Manufacturer/Brand: Lite-On, Inc.
Product description LED DVR CC AC/DC 56-140V 700MA
Datasheets: PA-1101-18T3.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 1626 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 1626 pcs
Reference Price (In US Dollars)
1 pcs
$22.569
10 pcs
$21.242
25 pcs
$19.914
100 pcs
$18.985
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$22.569

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of PA-1101-18T3

Part Number PA-1101-18T3 Manufacturer Lite-On, Inc.
Description LED DVR CC AC/DC 56-140V 700MA Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 1626 pcs Data sheet PA-1101-18T3.pdf
Weight 2 lbs (907.2g) Voltage - Output 56 ~ 140 V
Voltage - Isolation 3.75kV Voltage - Input (Min) 90VAC
Voltage - Input (Max) 305VAC Type Constant Current
Topology AC DC Converter Termination Style Wire Leads
Size / Dimension 8.35" L x 2.36" W x 1.34" H (212.0mm x 60.0mm x 34.0mm) Series -
Ratings IP66 Power (Watts) 100W
Other Names 160-2190
PA-1101-18T3-ND
Operating Temperature -40°C ~ 60°C
Number of Outputs 1 Mounting Type Chassis Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Features OCP, OTP, OVP, SCP Efficiency 90%
Dimming Analog Detailed Description 700mA 56 ~ 140 V Constant Current LED Driver AC DC Converter Topology 1 Output
Current - Output (Max) 700mA Approvals CE
