PT-121-RAX-L15-MPH

Luminus DevicesLuminus Devices

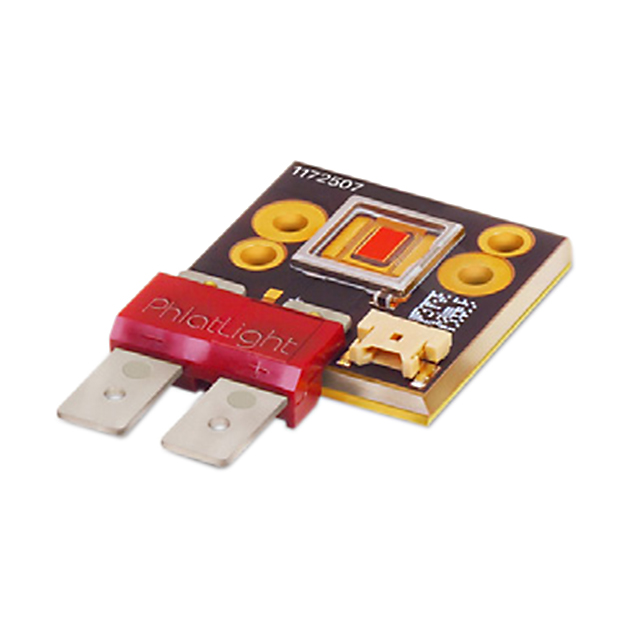

PT-121-RAX-L15-MPH Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: PT-121-RAX-L15-MPH
Manufacturer/Brand: Luminus Devices
Product description BIG CHIP LED HB MODULE RED-AMBER
Datasheets: PT-121-RAX-L15-MPH.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 1001 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 1001 pcs
Reference Price (In US Dollars)
1 pcs
$37.113
10 pcs
$34.64
50 pcs
$34.022
100 pcs
$31.176
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$37.113

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of PT-121-RAX-L15-MPH

Part Number PT-121-RAX-L15-MPH Manufacturer Luminus Devices
Description BIG CHIP LED HB MODULE RED-AMBER Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 1001 pcs Data sheet PT-121-RAX-L15-MPH.pdf
Wavelength 613nm Voltage - Forward (Vf) (Typ) 3V
Viewing Angle - Type LED Module
Temperature - Test 40°C Size / Dimension 28.00mm L x 42.00mm W
Series PT-121 Packaging Tray
Other Names 1214-1541
PT-121-RAX-L15-MPH-ND
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lumens/Watt @ Current - Test 48 lm/W Light Emitting Surface (LES) 3.00mm L x 4.00mm W
Lens Type Flat Lead Free Status / RoHS Status Lead free / RoHS Compliant
Height 5.70mm Flux @ Current/Temperature - Test 2575 lm (2150 lm ~ 3000 lm)
Features With Connector Detailed Description LED Lighting COBs, Engines, Modules LED Module PT-121 Amber Rectangle
Current - Test 18A Current - Max 27A
Configuration Rectangle Color Amber
CRI (Color Rendering Index) - CCT (K) -
