METZ CONNECT
| Part Number | 31049108 | Manufacturer | METZ CONNECT |
|---|---|---|---|

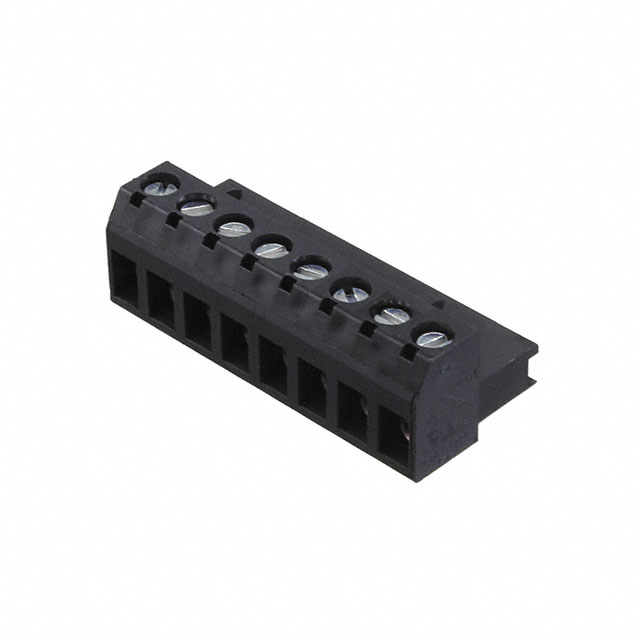

| Description | SCREW TYPE TERMINAL BLOCK, PLUG, | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14345 pcs | Data sheet | 31049108.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | 0.33-2.5mm² |
| Wire Gauge or Range - AWG | 12-22 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | 0.79 Nm (7.0 Lb-In) |
| Termination Style | Screw - Leaf Spring, Wire Guard | Series | - |
| Screw Size | M3 | Positions Per Level | 8 |
| Plug Wire Entry | 180° | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 1849-1178 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 8 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.500" (12.70mm) | Ingress Protection | IP20 |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Header Orientation | - |
| Features | Retention Latches (Non-Wire Side) | Detailed Description | 8 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line) |
| Current - UL | 15A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Gold |
| Contact Material | Beryllium Copper | Color | Black |
