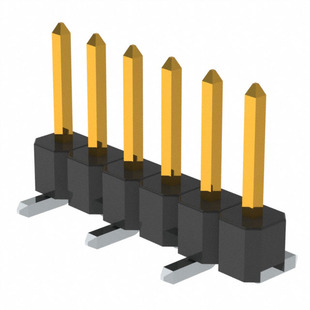

Part Number | PM20206VBNN | Manufacturer | METZ CONNECT |
---|---|---|---|
Description | PIN HEADER, SMT, SINGLE ROW, .10 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 274070 pcs | Data sheet | PM20206VBNN.pdf |
Voltage Rating | - | Termination | Solder |
Style | Board to Board | Shrouding | Unshrouded |
Series | - | Row Spacing - Mating | - |
Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
Overall Contact Length | - | Other Names | 1849-1036 1849-1036-2 1849-1036-2-ND |
Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
Number of Positions Loaded | All | Number of Positions | 6 |
Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | - | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyethylene |
Insulation Height | 0.098" (2.50mm) | Insulation Color | Black |
Ingress Protection | - | Features | - |
Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 6 position 0.100" (2.54mm) |
Current Rating | 3A | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Copper Zinc |
Contact Length - Post | - | Contact Length - Mating | 0.236" (6.00mm) |
Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | Flash |
Contact Finish - Post | - | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | - |
