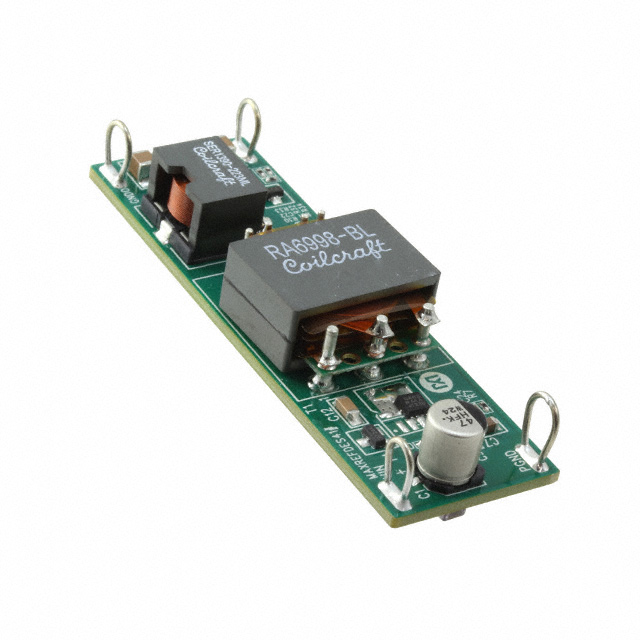

MAXREFDES41#

Maxim Integrated

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MAXREFDES41#
Manufacturer/Brand:	Maxim Integrated
Product description	REF DESIGN PLANAR TRANSFORMER PS
Datasheets:	MAXREFDES41#.pdf
RoHs Status	Not applicable / Not applicable
Stock Condition	2617 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2617 pcs

Reference Price (In US Dollars)

1 pcs: $14.558

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$14.558

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MAXREFDES41#

Part Number	MAXREFDES41#	Manufacturer	Maxim Integrated
Description	REF DESIGN PLANAR TRANSFORMER PS	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	2617 pcs	Data sheet	MAXREFDES41#.pdf
Voltage - Output	12V	Voltage - Input	18 V ~ 36 V
Utilized IC / Part	MAX17599	Supplied Contents	Board(s)
Series	-	Regulator Topology	Forward Converter
Power - Output	40W	Outputs and Type	1, Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Main Purpose	DC/DC, Step Down
Lead Free Status / RoHS Status	Not applicable / Not applicable	Frequency - Switching	250kHz
Detailed Description	MAX17599 - DC/DC, Step Down 1, Isolated Outputs Evaluation Board	Current - Output	3.5A
Board Type	Fully Populated
