TN2501N8-G

Micrel / Microchip Technology

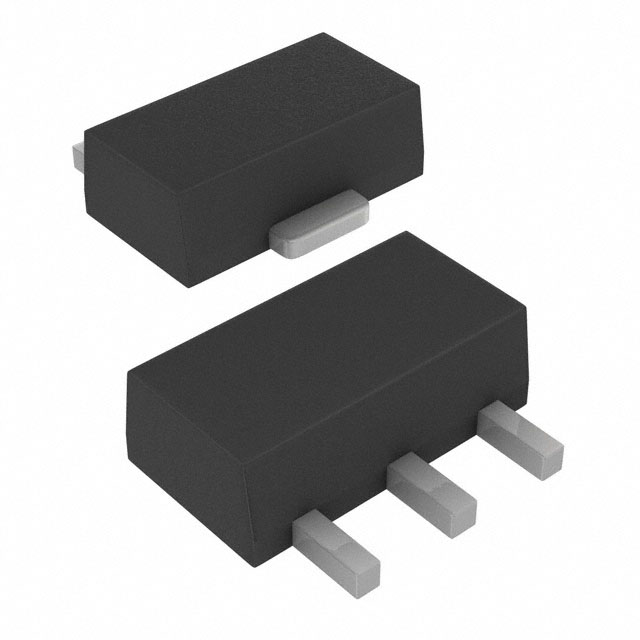

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TN2501N8-G
Manufacturer/Brand:	Micrel / Microchip Technology
Product description	MOSFET N-CH 18V 400MA SOT89-3
Datasheets:	TN2501N8-G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	106863 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 106863 pcs

Reference Price (In US Dollars)

2000 pcs: $0.311

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.311

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TN2501N8-G

Part Number	TN2501N8-G	Manufacturer	Micrel / Microchip Technology
Description	MOSFET N-CH 18V 400MA SOT89-3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	106863 pcs	Data sheet	TN2501N8-G.pdf
Vgs(th) (Max) @ Id	1V @ 1mA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	TO-243AA (SOT-89)
Series	-	Rds On (Max) @ Id, Vgs	2.5 Ohm @ 200mA, 3V
Power Dissipation (Max)	1.6W (Tc)	Packaging	Tape & Reel (TR)
Package / Case	TO-243AA	Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	110pF @ 15V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	1.2V, 3V	Drain to Source Voltage (Vdss)	18V
Detailed Description	N-Channel 18V 400mA (Tj) 1.6W (Tc) Surface Mount TO-243AA (SOT-89)	Current - Continuous Drain (Id) @ 25°C	400mA (Tj)
