0038-3-17-01-30-27-02-0

Mill-Max

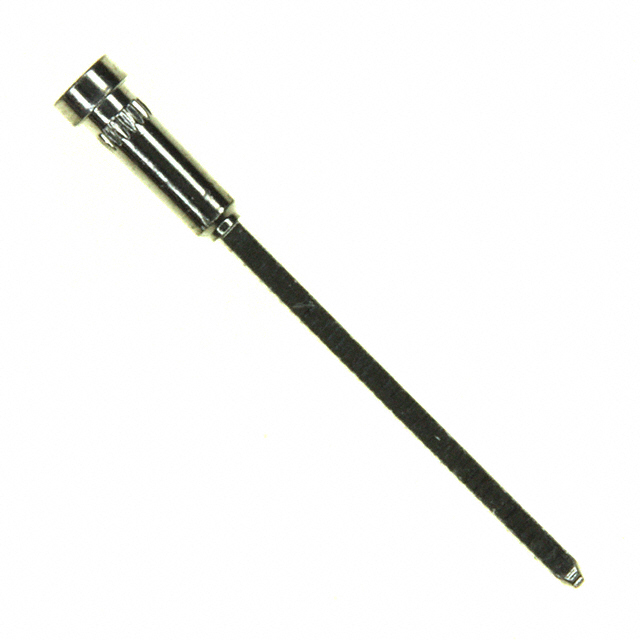

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0038-3-17-01-30-27-02-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PIN RCPT .015-.025 PRESSFIT
Datasheets:	1.0038-3-17-01-30-27-02-0.pdf 2.0038-3-17-01-30-27-02-0.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	263136 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 263136 pcs

Reference Price (In US Dollars)

1 pcs: $0.126

10 pcs: $0.119

25 pcs: $0.102

50 pcs: $0.087

100 pcs: $0.083

250 pcs: $0.075

500 pcs: $0.071

1000 pcs: $0.059

2500 pcs: $0.054

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.126

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0038-3-17-01-30-27-02-0

Part Number	0038-3-17-01-30-27-02-0	Manufacturer	Mill-Max
Description	CONN PIN RCPT .015-.025 PRESSFIT	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	263136 pcs	Data sheet	1.0038-3-17-01-30-27-02-0.pdf 2.0038-3-17-01-30-27-02-0.pdf
Termination	Press-Fit	Tail Type	Wire Wrap
Tail Diameter	0.025" (0.64mm) Square	Socket Depth	0.162" (4.12mm)
Series	38	Pin Hole Diameter	0.043" (1.09mm)
Packaging	Bulk	Other Names	0038-3-17-01-30-27-0 0038-3-17-01-3027020 0038317013027020 3.8317E+13 38317013027020 ED5001
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.057" (1.45mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Length - Overall	0.700" (17.78mm)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Insertion Force	-
Flange Diameter	0.072" (1.83mm)	Features	-
Detailed Description	Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Wire Wrap Press-Fit	Contact Material	Beryllium Copper
Contact Finish Thickness	30.0µin (0.76µm)	Contact Finish	Gold
Board Thickness	-	Accepts Square Pin Size	-
Accepts Pin Diameter	0.015" ~ 0.025" (0.38mm ~ 0.64mm)
