1313-0-15-15-18-27-04-0

Mill-Max

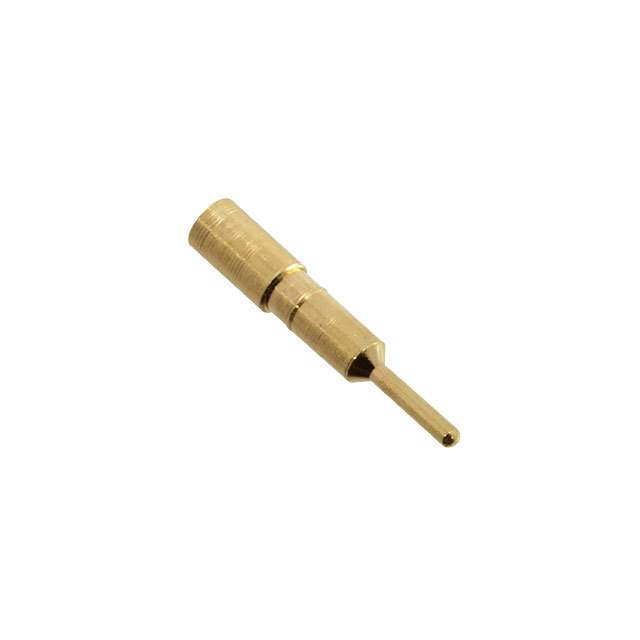

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1313-0-15-15-18-27-04-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PIN RCPT .037-.043 PRESSFIT
Datasheets:	1.1313-0-15-15-18-27-04-0.pdf 2.1313-0-15-15-18-27-04-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	200000 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 200000 pcs

Reference Price (In US Dollars)

1 pcs: $0.169

10 pcs: $0.158

25 pcs: $0.135

50 pcs: $0.115

100 pcs: $0.111

250 pcs: $0.099

500 pcs: $0.095

1000 pcs: $0.079

2500 pcs: $0.072

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.169

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1313-0-15-15-18-27-04-0

Part Number	1313-0-15-15-18-27-04-0	Manufacturer	Mill-Max
Description	CONN PIN RCPT .037-.043 PRESSFIT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	200000 pcs	Data sheet	1.1313-0-15-15-18-27-04-0.pdf 2.1313-0-15-15-18-27-04-0.pdf
Termination	Press-Fit	Tail Type	Standard Tail
Tail Diameter	0.024" (0.61mm)	Socket Depth	0.185" (4.70mm)
Series	1313	Pin Hole Diameter	0.054" (1.37mm)
Packaging	Bulk	Other Names	1313-015151827040 1313-015151827040-ND 1313015151827040 ED1173
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.056" (1.42mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Length - Overall	0.370" (9.40mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Force	-
Flange Diameter	0.065" (1.65mm)	Features	-
Detailed Description	Pin Receptacle Connector 0.037" ~ 0.043" (0.94mm ~ 1.09mm) Standard Tail Press-Fit	Contact Material	Beryllium Copper
Contact Finish Thickness	30.0µin (0.76µm)	Contact Finish	Gold
Board Thickness	-	Accepts Square Pin Size	-
Accepts Pin Diameter	0.037" ~ 0.043" (0.94mm ~ 1.09mm)
