1705-0-15-15-30-27-04-0

Mill-Max

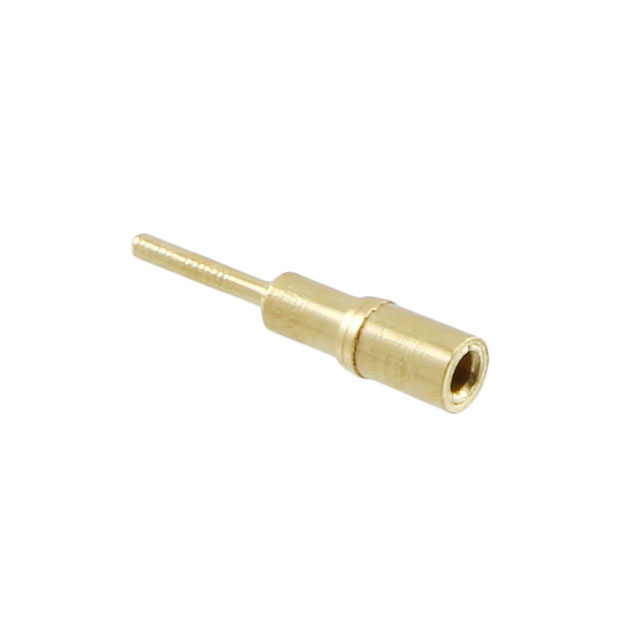

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1705-0-15-15-30-27-04-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PIN RCPT .015-.025 PRESSFIT
Datasheets:	1.1705-0-15-15-30-27-04-0.pdf 2.1705-0-15-15-30-27-04-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	261056 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 261056 pcs

Reference Price (In US Dollars)

1 pcs: $0.126

10 pcs: $0.119

25 pcs: $0.102

50 pcs: $0.087

100 pcs: $0.084

250 pcs: $0.075

500 pcs: $0.072

1000 pcs: $0.06

2500 pcs: $0.055

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.126

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1705-0-15-15-30-27-04-0

Part Number	1705-0-15-15-30-27-04-0	Manufacturer	Mill-Max
Description	CONN PIN RCPT .015-.025 PRESSFIT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	261056 pcs	Data sheet	1.1705-0-15-15-30-27-04-0.pdf 2.1705-0-15-15-30-27-04-0.pdf
Termination	Press-Fit	Tail Type	Standard Tail
Tail Diameter	0.020" (0.51mm)	Socket Depth	0.145" (3.68mm)
Series	1705	Pin Hole Diameter	0.043" (1.09mm)
Packaging	Bulk	Other Names	1705-015153027040 1705-015153027040-ND 1705015153027040 ED1193
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.057" (1.45mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Length - Overall	0.290" (7.37mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Force	-
Flange Diameter	-	Features	-
Detailed Description	Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Press-Fit	Contact Material	Beryllium Copper
Contact Finish Thickness	30.0µin (0.76µm)	Contact Finish	Gold
Board Thickness	-	Accepts Square Pin Size	-
Accepts Pin Diameter	0.015" ~ 0.025" (0.38mm ~ 0.64mm)
