2506-3-00-44-00-00-07-0

Mill-MaxMill-Max

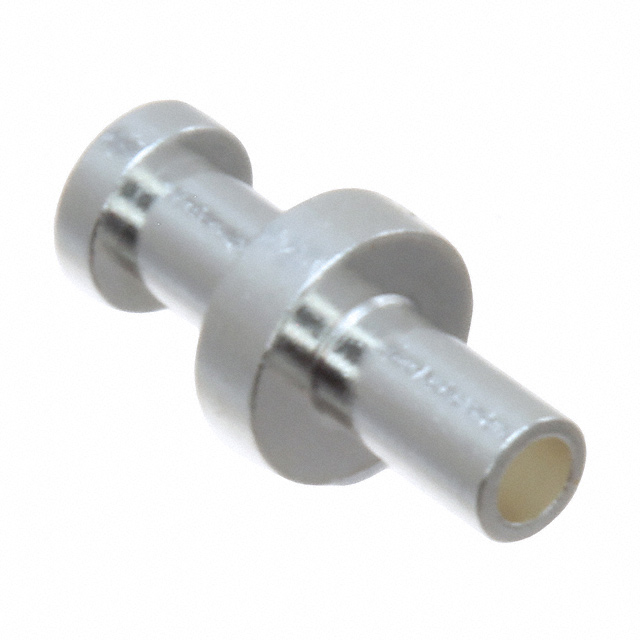

2506-3-00-44-00-00-07-0 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 2506-3-00-44-00-00-07-0
Manufacturer/Brand: Mill-Max
Product description TERM TURRET SINGLE L=3.96MM
Datasheets: 1.2506-3-00-44-00-00-07-0.pdf2.2506-3-00-44-00-00-07-0.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 120471 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 120471 pcs
Reference Price (In US Dollars)
1 pcs
$0.306
10 pcs
$0.269
25 pcs
$0.253
50 pcs
$0.242
100 pcs
$0.232
250 pcs
$0.211
500 pcs
$0.19
1000 pcs
$0.169
2500 pcs
$0.153
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$0.306

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 2506-3-00-44-00-00-07-0

Part Number 2506-3-00-44-00-00-07-0 Manufacturer Mill-Max
Description TERM TURRET SINGLE L=3.96MM Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 120471 pcs Data sheet 1.2506-3-00-44-00-00-07-0.pdf2.2506-3-00-44-00-00-07-0.pdf
Termination Swage Terminal Type Single End
Staking Side OD 0.062" (1.57mm) Staking Side ID 0.043" (1.09mm)
Series 2506 Other Names 2506-300440000070
2506-300440000070-ND
2506300440000070
ED11399
Number of Turrets Single Mounting Type Through Hole
Mounting Hole Diameter 0.067" (1.70mm) Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material - Insulation - Length - Overall 0.271" (6.88mm)
Length - Below Flange 0.115" (2.92mm) Length - Above Board 0.156" (3.96mm)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Color -
Insulation Non-Insulated Flange Diameter 0.125" (3.18mm)
Diameter - Turret Head 0.093" (2.36mm) Detailed Description Terminal Turret Connector Single End 0.156" (3.96mm) Silver
Contact Material Brass Alloy Contact Finish Thickness 300.0µin (7.62µm)
Contact Finish Silver Board Thickness 0.094" (2.39mm)
