2704-2-00-80-00-00-07-0

Mill-MaxMill-Max

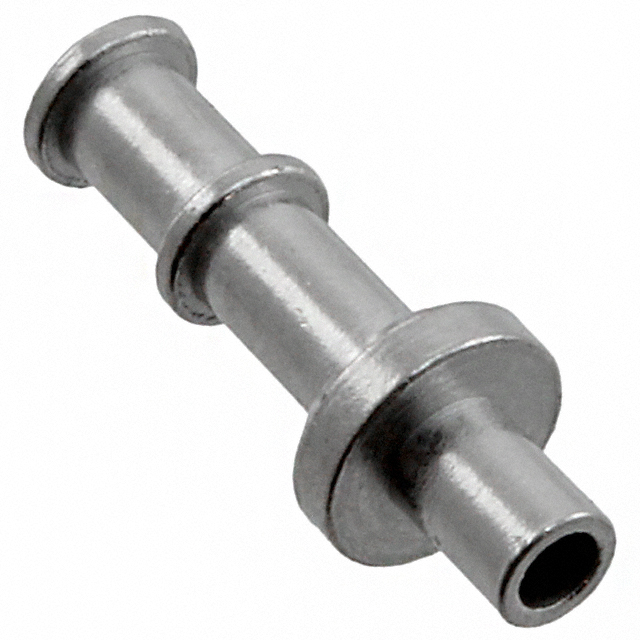

2704-2-00-80-00-00-07-0 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 2704-2-00-80-00-00-07-0
Manufacturer/Brand: Mill-Max
Product description TERM TURRET SINGLE L=8.33MM TIN
Datasheets: 1.2704-2-00-80-00-00-07-0.pdf2.2704-2-00-80-00-00-07-0.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 299191 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 299191 pcs
Reference Price (In US Dollars)
1 pcs
$0.123
10 pcs
$0.115
25 pcs
$0.098
50 pcs
$0.084
100 pcs
$0.08
250 pcs
$0.072
500 pcs
$0.069
1000 pcs
$0.057
2500 pcs
$0.052
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$0.123

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 2704-2-00-80-00-00-07-0

Part Number 2704-2-00-80-00-00-07-0 Manufacturer Mill-Max
Description TERM TURRET SINGLE L=8.33MM TIN Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 299191 pcs Data sheet 1.2704-2-00-80-00-00-07-0.pdf2.2704-2-00-80-00-00-07-0.pdf
Termination Swage Terminal Type Single End
Staking Side OD 0.078" (1.98mm) Staking Side ID 0.055" (1.40mm)
Series 2704 Other Names ED1297
Number of Turrets Double Mounting Type Through Hole
Mounting Hole Diameter 0.082" (2.08mm) Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material - Insulation - Length - Overall 0.433" (11.00mm)
Length - Below Flange 0.105" (2.67mm) Length - Above Board 0.328" (8.33mm)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Color -
Insulation Non-Insulated Flange Diameter 0.156" (3.96mm)
Diameter - Turret Head 0.109" (2.77mm) Detailed Description Terminal Turret Connector Single End 0.328" (8.33mm) Tin
Contact Material Brass Alloy Contact Finish Thickness 200.0µin (5.08µm)
Contact Finish Tin Board Thickness 0.062" (1.57mm)
