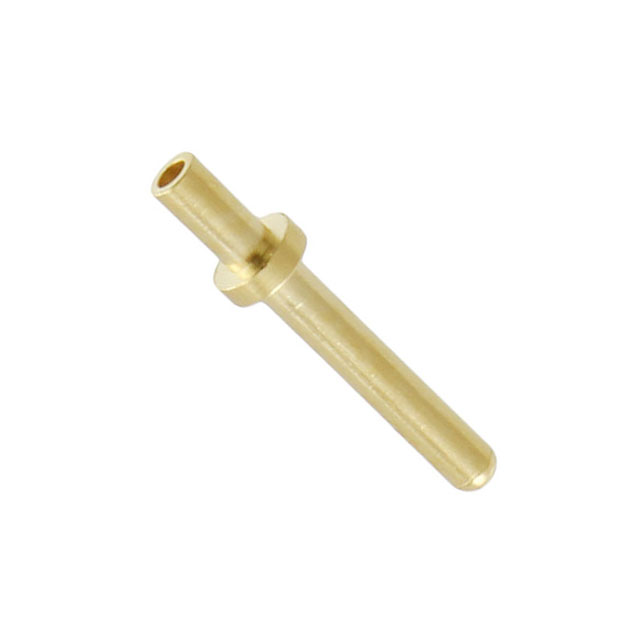

Part Number | 3141-2-00-15-00-00-08-0 | Manufacturer | Mill-Max |
---|---|---|---|
Description | CONN PC PIN CIRC 0.040DIA GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 513147 pcs | Data sheet | 1.3141-2-00-15-00-00-08-0.pdf2.3141-2-00-15-00-00-08-0.pdf |
Termination | Swage | Terminal Type | PC Pin |
Terminal Style | Single End | Series | 3141 |
Pin Size - Below Flange | - | Pin Size - Above Flange | 0.040" (1.02mm) Dia |
Packaging | Bulk | Other Names | 3141-200150000080 3141-200150000080-ND 3141200150000080 ED1279 |
Mounting Type | Through Hole | Mounting Hole Diameter | 0.043" (1.09mm) |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
Length - Overall | 0.332" (8.43mm) | Length - Below Flange | 0.082" (2.08mm) |
Length - Above Flange | 0.230" (5.84mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Color | - | Insulation | Non-Insulated |
Flange Diameter | 0.070" (1.77mm) | Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.040" (1.02mm) Dia |
Contact Material | Brass Alloy | Contact Finish Thickness | 10.0µin (0.25µm) |
Contact Finish | Gold | Board Thickness | 0.062" (1.57mm) |
