5275-1-05-15-00-00-01-0

Mill-Max

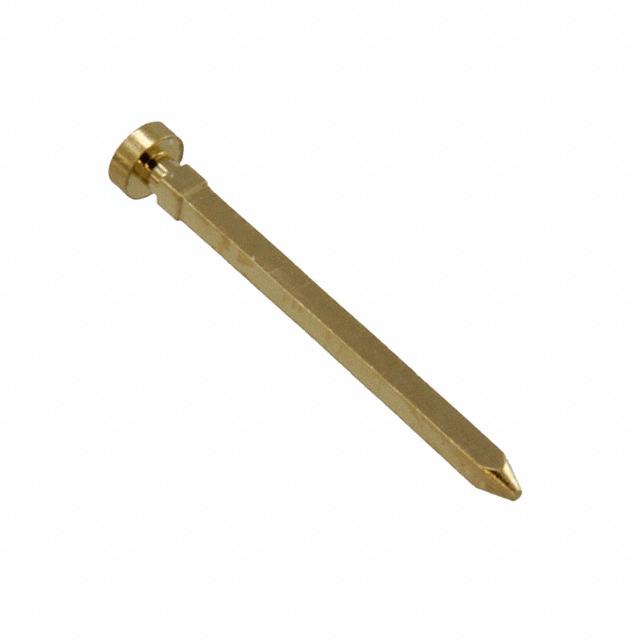

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5275-1-05-15-00-00-01-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PC PIN SQUARE 0.025 GOLD
Datasheets:	1.5275-1-05-15-00-00-01-0.pdf 2.5275-1-05-15-00-00-01-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	356077 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 356077 pcs

Reference Price (In US Dollars)

1 pcs: $0.091

10 pcs: $0.087

25 pcs: $0.075

50 pcs: $0.063

100 pcs: $0.061

250 pcs: $0.055

500 pcs: $0.052

1000 pcs: $0.044

2500 pcs: $0.04

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.091

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5275-1-05-15-00-00-01-0

Part Number	5275-1-05-15-00-00-01-0	Manufacturer	Mill-Max
Description	CONN PC PIN SQUARE 0.025 GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	356077 pcs	Data sheet	1.5275-1-05-15-00-00-01-0.pdf 2.5275-1-05-15-00-00-01-0.pdf
Termination	Press-Fit, Square, Wire Wrap	Terminal Type	PC Pin
Terminal Style	Single End	Series	5275
Pin Size - Below Flange	-	Pin Size - Above Flange	0.025" (0.64mm) Square
Packaging	Bulk	Other Names	5275-105150000010 5275-105150000010-ND 5275105150000010 ED1281
Mounting Type	Through Hole	Mounting Hole Diameter	0.035" (0.89mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	-
Length - Overall	0.440" (11.18mm)	Length - Below Flange	-
Length - Above Flange	0.420" (10.67mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Color	-	Insulation	Non-Insulated
Flange Diameter	0.060" (1.52mm)	Detailed Description	PC Pin Terminal Connector Through Hole Gold 0.025" (0.64mm) Square
Contact Material	Brass Alloy	Contact Finish Thickness	10.0µin (0.25µm)
Contact Finish	Gold	Board Thickness	-
