Mill-Max

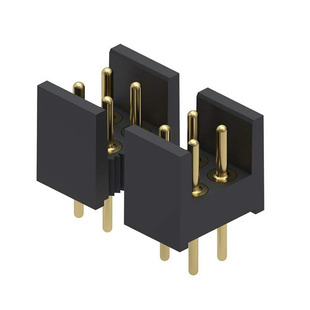

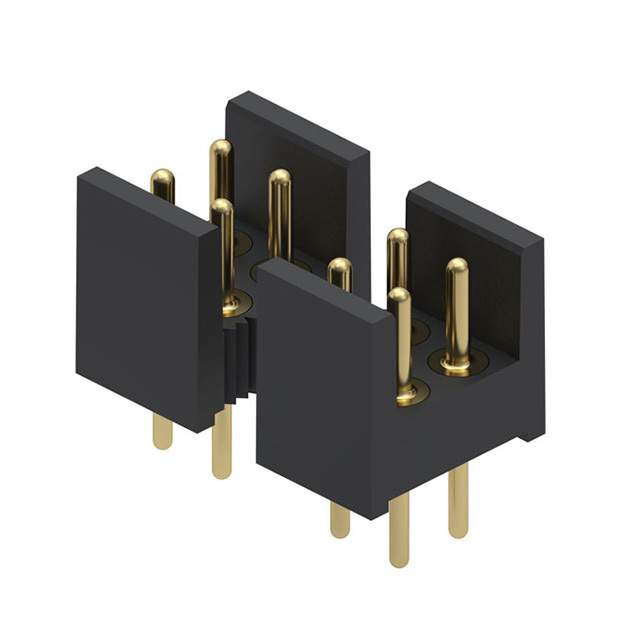

| Part Number | 802-10-064-10-052000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN HEADER 64POS 0.100" T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6239 pcs | Data sheet | 1.802-10-064-10-052000.pdf2.802-10-064-10-052000.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Shrouded - 2 Wall |
| Series | 802 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Overall Contact Length | 0.395" (10.03mm) | Other Names | 8021006410052000 ED1104 |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 64 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS) |
| Insulation Height | 0.271" (6.88mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 64 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass Alloy |
| Contact Length - Post | 0.124" (3.15mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
