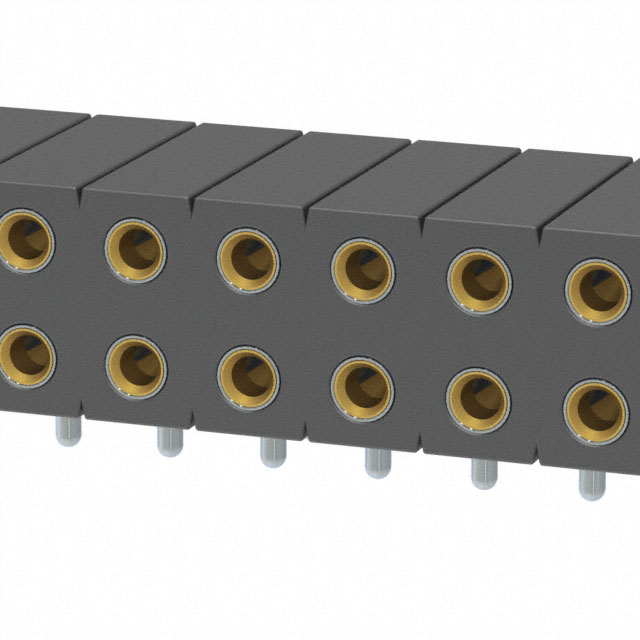

Mill-Max
| Part Number | 803-47-098-20-001000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN HDR PIN | Lead Free Status / RoHS Status | RoHS Compliant |
| Quantity Available | 3341 pcs | Data sheet | 1.803-47-098-20-001000.pdf2.803-47-098-20-001000.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | 803 |
| Row Spacing - Mating | 0.100" (2.54mm) | RoHS Status | RoHS Compliant |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 98 |
| Mounting Type | Through Hole, Right Angle | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Insulation Height | 0.200" (5.08mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 98 Position Receptacle Connector Through Hole, Right Angle |
| Current Rating | 4.5A | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Beryllium Copper |
| Contact Length - Post | 0.126" (3.20mm) | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
