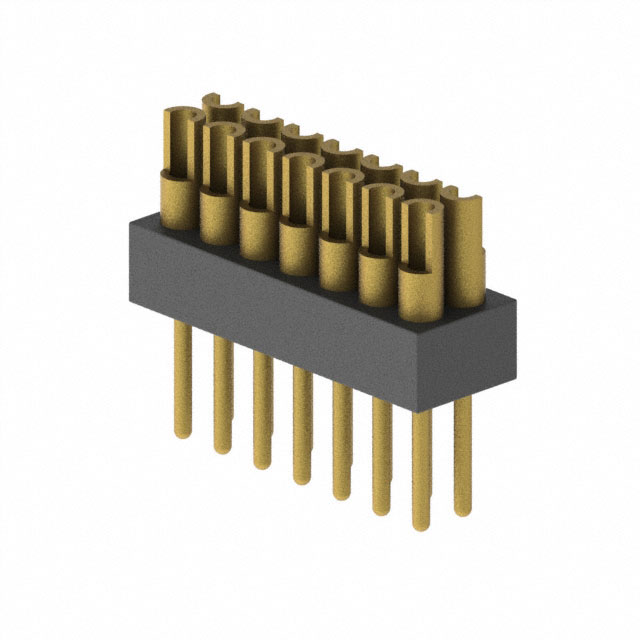

Part Number | 852-10-014-10-003000 | Manufacturer | Mill-Max |
---|---|---|---|
Description | SOLDER CUP HEADER; .050" PITCH; | Lead Free Status / RoHS Status | |
Quantity Available | 30130 pcs | Data sheet | 1.852-10-014-10-003000.pdf2.852-10-014-10-003000.pdf |
Voltage Rating | - | Termination | Solder |
Style | Board to Board | Shrouding | Unshrouded |
Series | 852 | Row Spacing - Mating | 0.050" (1.27mm) |
Pitch - Mating | 0.050" (1.27mm) | Packaging | Bulk |
Overall Contact Length | 0.303" (7.70mm) | Other Names | ED10283 |
Operating Temperature | - | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 14 |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
Material Flammability Rating | - | Mated Stacking Heights | - |
Insulation Material | Polyamide (PA46), Nylon 4/6 | Insulation Height | 0.075" (1.90mm) |
Insulation Color | Black | Ingress Protection | - |
Features | - | Fastening Type | Push-Pull |
Detailed Description | Connector Header Through Hole 14 position 0.050" (1.27mm) | Current Rating | - |
Contact Type | Male Pin | Contact Shape | Circular |
Contact Material | Brass Alloy | Contact Length - Post | 0.122" (3.10mm) |
Contact Length - Mating | 0.100" (2.54mm) | Contact Finish Thickness - Post | - |
Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
Contact Finish - Mating | Gold | Connector Type | Header |
Applications | - |
