9548-0-15-15-21-27-10-0

Mill-Max

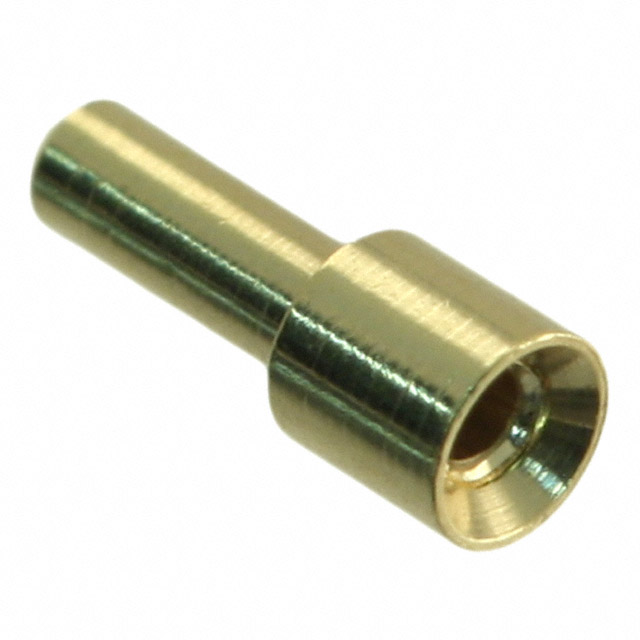

Image may be representation. See specifications for product details.

Product Overview

Part Number:	9548-0-15-15-21-27-10-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PIN RCPT .015-.022 SOLDER
Datasheets:	1.9548-0-15-15-21-27-10-0.pdf 2.9548-0-15-15-21-27-10-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	384679 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 384679 pcs

Reference Price (In US Dollars)

1 pcs: $0.098

10 pcs: $0.091

25 pcs: $0.078

50 pcs: $0.068

100 pcs: $0.063

250 pcs: $0.056

500 pcs: $0.053

1000 pcs: $0.044

2500 pcs: $0.04

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.098

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 9548-0-15-15-21-27-10-0

Part Number	9548-0-15-15-21-27-10-0	Manufacturer	Mill-Max
Description	CONN PIN RCPT .015-.022 SOLDER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	384679 pcs	Data sheet	1.9548-0-15-15-21-27-10-0.pdf 2.9548-0-15-15-21-27-10-0.pdf
Termination	Solder	Tail Type	No Tail
Tail Diameter	-	Socket Depth	0.138" (3.51mm)
Series	9548	Pin Hole Diameter	0.031" (0.79mm)
Packaging	Bulk	Other Names	9548-015152127100 9548-015152127100-ND 9548015152127100 ED1060 Q5519157
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.036" (0.91mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Length - Overall	0.155" (3.94mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Force	-
Flange Diameter	0.058" (1.47mm)	Features	-
Detailed Description	Pin Receptacle Connector 0.015" ~ 0.022" (0.38mm ~ 0.56mm) No Tail Solder	Contact Material	Beryllium Copper
Contact Finish Thickness	30.0µin (0.76µm)	Contact Finish	Gold
Board Thickness	-	Accepts Square Pin Size	-
Accepts Pin Diameter	0.015" ~ 0.022" (0.38mm ~ 0.56mm)
