56T200C

Murata Power Solutions

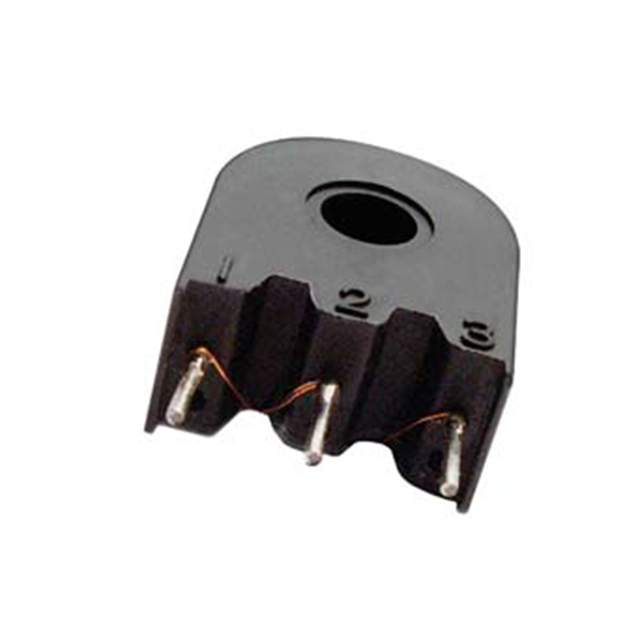

Image may be representation. See specifications for product details.

Product Overview

Part Number:	56T200C
Manufacturer/Brand:	Murata Power Solutions
Product description	CURR SENSE XFMR 10A T/H
Datasheets:	56T200C.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	65248 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 65248 pcs

Reference Price (In US Dollars)

25 pcs: $0.555

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.555

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 56T200C

Part Number	56T200C	Manufacturer	Murata Power Solutions
Description	CURR SENSE XFMR 10A T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	65248 pcs	Data sheet	56T200C.pdf
Weight	0.013 lb (5.70g)	Type	Non-Invasive (Solid Core)
Turns Ratio - Primary:Secondary	-	Termination Style	PC Pin
Size / Dimension	0.661" L x 0.350" W (16.79mm x 8.89mm)	Series	5600
Ratings	-	Packaging	Tube
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.795" (20.19mm)
Frequency Range	20kHz ~ 200kHz	Energy Time (E.T.)	-
Detailed Description	10A Current Sense Transformer 20kHz ~ 200kHz 1.87 mOhm Primary, 2.81 mOhm Secondary Through Hole	DC Resistance (DCR)	1.87 mOhm Primary, 2.81 mOhm Secondary
Current Ratio	200CT:1	Current Rating	10A
