A24JP

NKK Switches

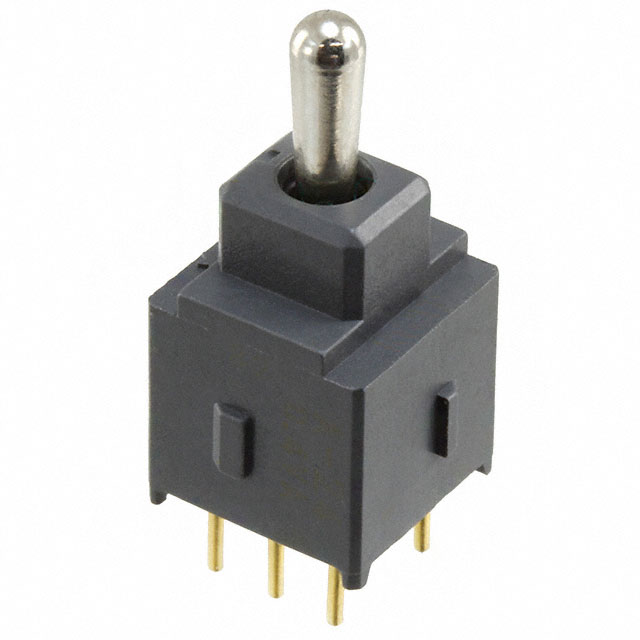

Image may be representation. See specifications for product details.

Product Overview

Part Number:	A24JP
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TOGGLE SP3T 0.4VA 28V
Datasheets:	A24JP.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13840 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 13840 pcs

Reference Price (In US Dollars)

1 pcs: $2.107

10 pcs: $2.002

25 pcs: $1.949

50 pcs: $1.897

100 pcs: $1.844

250 pcs: $1.739

500 pcs: $1.475

1000 pcs: $1.396

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.107

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of A24JP

Part Number	A24JP	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SP3T 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13840 pcs	Data sheet	A24JP.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	28V
Termination Style	PC Pin	Switch Function	On-On-On
Series	A	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	360-3408 A24JP-ND
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Jumper needed to achieve triple throw	Electrical Life	50,000 Cycles
Detailed Description	Toggle Switch SP3T Through Hole	Current Rating	0.4VA (AC/DC)
Circuit	SP3T	Bushing Thread	Unthreaded, Square
Actuator Type	Standard Round	Actuator Material	Brass, Nickel Plated
Actuator Length	6.30mm
