HB16SKW01-5C-CB

NKK Switches

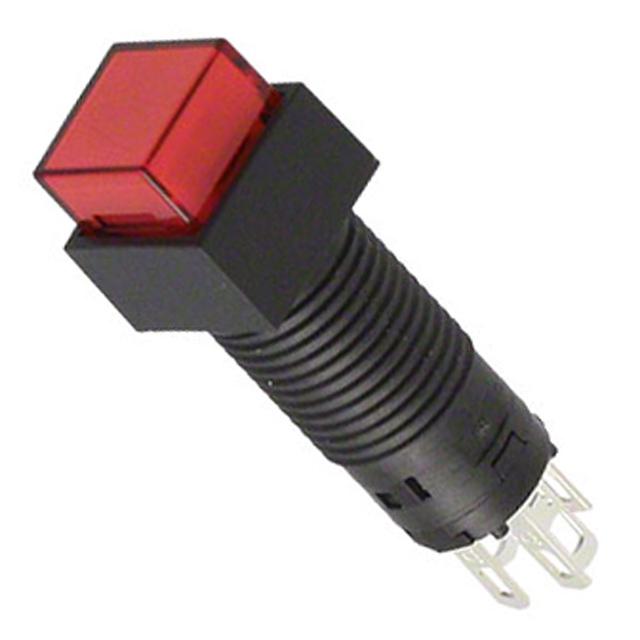

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HB16SKW01-5C-CB
Manufacturer/Brand:	NKK Switches
Product description	SWITCH PUSH SPDT 0.1A 30V
Datasheets:	HB16SKW01-5C-CB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11641 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 11641 pcs

Reference Price (In US Dollars)

1 pcs: $2.975

10 pcs: $2.756

25 pcs: $2.683

50 pcs: $2.611

100 pcs: $2.466

250 pcs: $2.393

500 pcs: $2.248

1000 pcs: $2.031

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.975

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HB16SKW01-5C-CB

Part Number	HB16SKW01-5C-CB	Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.1A 30V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11641 pcs	Data sheet	HB16SKW01-5C-CB.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	30V
Type	Standard, Illuminated	Termination Style	Solder Lug
Switch Function	On-On	Series	HB
Panel Cutout Dimensions	Circular - 8.00mm Dia	Packaging	Tray
Other Names	360-2654 HB16SKW01-5C-CB-ND HB16SKW015CCB	Operating Temperature	-25°C ~ 50°C
Mounting Type	Panel Mount, Front	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	1.95 VDC
Illumination Type, Color	LED, Red	Features	-
Electrical Life	50,000 Cycles	Detailed Description	Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
Current Rating	100mA (DC)	Color - Actuator/Cap	Red
Circuit	SPDT	Actuator Type	Square, Button
