JB15FP

NKK Switches

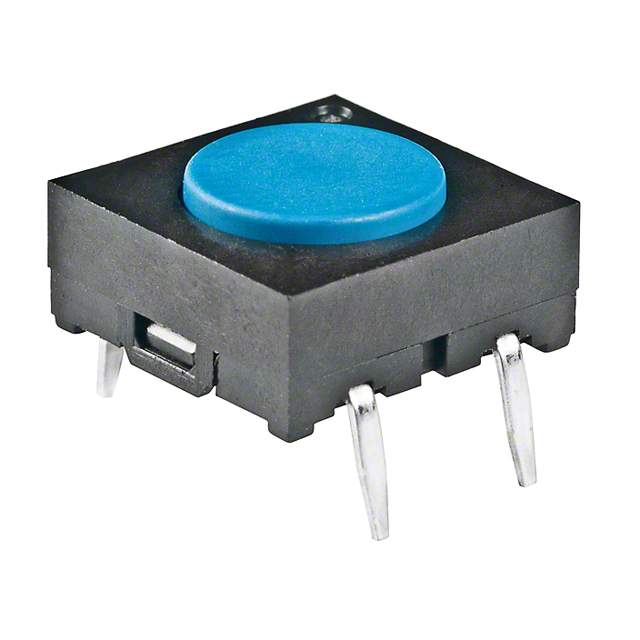

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JB15FP
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TACTILE SPST-NO 0.05A 24V
Datasheets:	JB15FP.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	48217 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 48217 pcs

Reference Price (In US Dollars)

1 pcs: $0.608

10 pcs: $0.584

25 pcs: $0.538

50 pcs: $0.468

100 pcs: $0.444

250 pcs: $0.432

500 pcs: $0.421

1000 pcs: $0.327

5000 pcs: $0.304

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.608

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JB15FP

Part Number	JB15FP	Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	48217 pcs	Data sheet	JB15FP.pdf
Termination Style	PC Pin	Switch Travel	0.25mm
Switch Function	Off-Mom	Series	JB
Packaging	Bulk	Outline	10.00mm x 10.00mm
Other Names	360-2634 JB15FP-ND	Operating Temperature	-25°C ~ 70°C
Operating Force	176gf	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	5,000,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Process Sealed
Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole	Contact Rating @ Voltage	0.05A @ 24VDC
Circuit	SPST-NO	Actuator Type	Round Button
Actuator Orientation	Top Actuated	Actuator Material	Polybutylene Terephthalate (PBT)
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	4.90mm
