NKK Switches

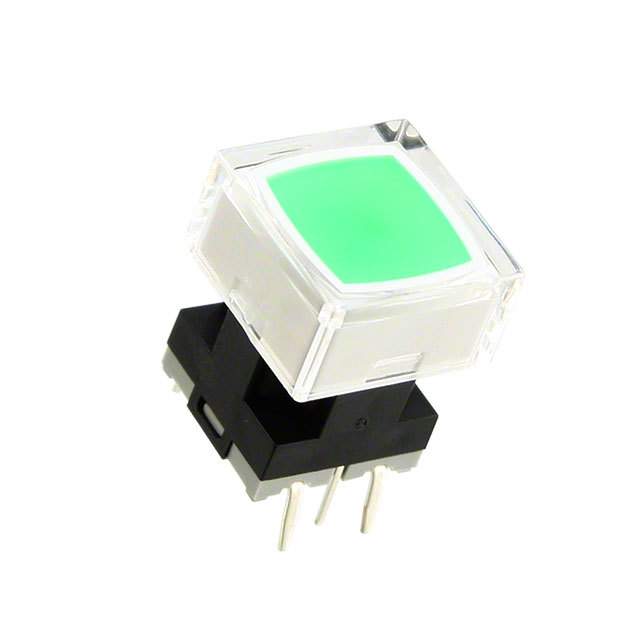

| Part Number | JB15HBPF-JF | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TACT SPST-NO 0.125A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21018 pcs | Data sheet | JB15HBPF-JF.pdf |
| Termination Style | PC Pin | Switch Travel | 0.30mm |
| Switch Function | Off-Mom | Series | JB |
| Packaging | Bulk | Outline | 10.00mm x 10.00mm |
| Other Names | 360-2638 JB15BPF-JF JB15BPF-JF-ND JB15HBPFJF Q2354501B |
Operating Temperature | -25°C ~ 70°C |
| Operating Force | 265gf | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 1,000,000 Cycles |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | 2.1 VDC | Illumination Type, Color | LED, Green |
| Illumination | Illuminated | Features | Process Sealed |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole | Contact Rating @ Voltage | 0.125A @ 24VDC |
| Circuit | SPST-NO | Actuator Type | Square Button |
| Actuator Orientation | Top Actuated | Actuator Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 14.70mm |
