JF15AP1CC

NKK Switches

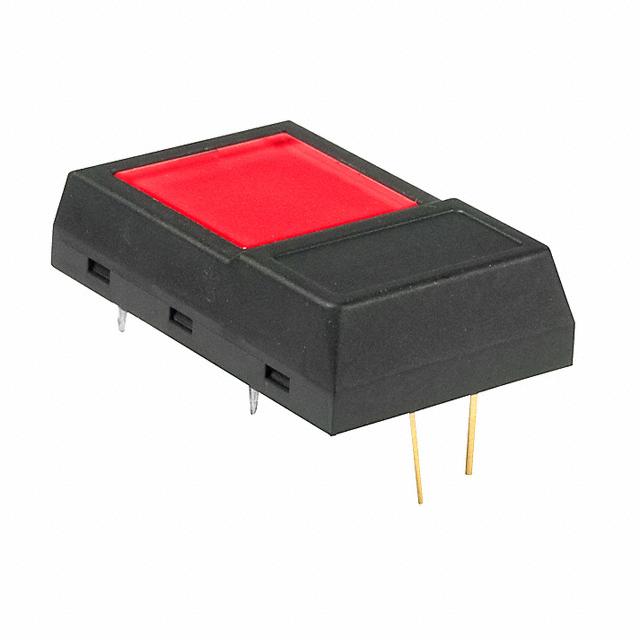

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JF15AP1CC
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TACTILE SPST-NO 0.05A 24V
Datasheets:	JF15AP1CC.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17412 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 17412 pcs

Reference Price (In US Dollars)

1 pcs: $1.932

10 pcs: $1.835

25 pcs: $1.787

50 pcs: $1.739

100 pcs: $1.594

250 pcs: $1.449

500 pcs: $1.352

1000 pcs: $1.304

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.932

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JF15AP1CC

Part Number	JF15AP1CC	Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17412 pcs	Data sheet	JF15AP1CC.pdf
Termination Style	PC Pin	Switch Travel	0.40mm
Switch Function	Off-Mom	Series	JF
Packaging	Bulk	Outline	22.80mm x 17.70mm
Other Names	360-1266 JF15APC1CC	Operating Temperature	-25°C ~ 70°C
Operating Force	300gf	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	500,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	1.77 VDC	Illumination Type, Color	LED, Red
Illumination	Illuminated	Features	Process Sealed
Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole	Contact Rating @ Voltage	0.05A @ 24VDC
Circuit	SPST-NO	Actuator Type	Square Button
Actuator Orientation	Top Actuated	Actuator Material	Polycarbonate (PC)
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	6.70mm
