JF15SP4G

NKK Switches

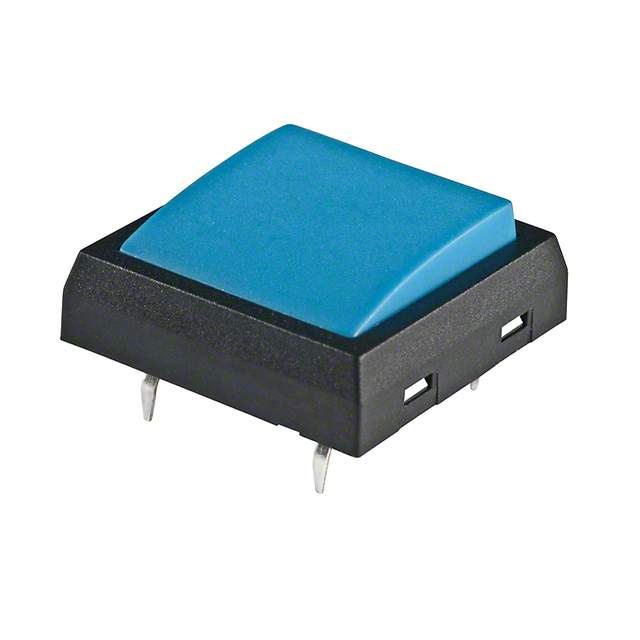

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JF15SP4G
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TACTILE SPST-NO 0.05A 24V
Datasheets:	JF15SP4G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	25703 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 25703 pcs

Reference Price (In US Dollars)

1 pcs: $1.352

10 pcs: $1.30

25 pcs: $1.196

50 pcs: $1.04

100 pcs: $0.988

250 pcs: $0.962

500 pcs: $0.936

1000 pcs: $0.728

5000 pcs: $0.676

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.352

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JF15SP4G

Part Number	JF15SP4G	Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	25703 pcs	Data sheet	JF15SP4G.pdf
Termination Style	PC Pin	Switch Travel	0.80mm
Switch Function	Off-Mom	Series	JF
Packaging	Tray	Outline	17.70mm x 17.70mm
Operating Temperature	-25°C ~ 85°C	Operating Force	200gf
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	500,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Process Sealed	Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole
Contact Rating @ Voltage	0.05A @ 24VDC	Circuit	SPST-NO
Actuator Type	Square Button	Actuator Orientation	Top Actuated
Actuator Material	Polyamide (PA), Nylon	Actuator Length, Right Angle	-
Actuator Height off PCB, Vertical	6.98mm
