JWL11RBA

NKK Switches

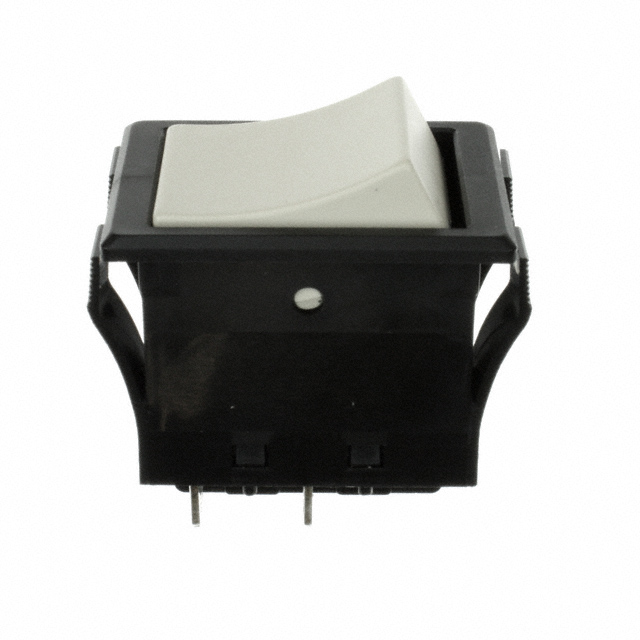

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JWL11RBA
Manufacturer/Brand:	NKK Switches
Product description	SWITCH ROCKER SPST 16A 125V
Datasheets:	JWL11RBA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11618 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 11618 pcs

Reference Price (In US Dollars)

1 pcs: $2.483

10 pcs: $2.302

25 pcs: $2.181

50 pcs: $2.151

100 pcs: $2.12

250 pcs: $2.06

500 pcs: $1.878

1000 pcs: $1.696

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.483

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JWL11RBA

Part Number	JWL11RBA	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPST 16A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11618 pcs	Data sheet	JWL11RBA.pdf
Voltage Rating - AC	125V	Termination Style	Solder, Quick Connect - 0.187" (4.7mm)
Switch Function	On-Off	Series	JW
Panel Cutout Dimensions	Rectangular - 29.50mm x 20.50mm	Packaging	Bulk
Operating Temperature	-25°C ~ 70°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	25,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	Dust Proof
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Epoxy Sealed Terminals	Electrical Life	25,000 Cycles
Detailed Description	Rocker Switch SPST 16A (AC) 125V Panel Mount, Snap-In	Current Rating	16A (AC)
Color - Actuator/Cap	Ivory	Circuit	SPST
Actuator Type	Concave (Curved)	Actuator Marking	No Marking
