JWM21RA2A/UCV

NKK Switches

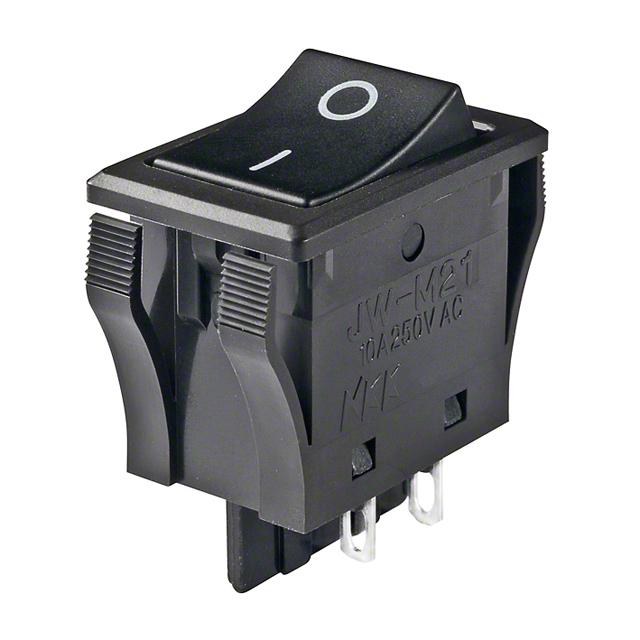

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JWM21RA2A/UCV
Manufacturer/Brand:	NKK Switches
Product description	SWITCH ROCKER DPST 10A 125V
Datasheets:	JWM21RA2A/UCV.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10459 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 10459 pcs

Reference Price (In US Dollars)

1 pcs: $2.831

10 pcs: $2.623

25 pcs: $2.485

50 pcs: $2.45

100 pcs: $2.416

250 pcs: $2.347

500 pcs: $2.139

1000 pcs: $1.932

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.831

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JWM21RA2A/UCV

Part Number	JWM21RA2A/UCV	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPST 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10459 pcs	Data sheet	JWM21RA2A/UCV.pdf
Voltage Rating - AC	125V	Termination Style	Solder, Quick Connect - 0.110" (2.8mm)
Switch Function	On-Off	Series	JW
Panel Cutout Dimensions	Rectangular - 24.00mm x 15.40mm	Packaging	Bulk
Other Names	JWM21RA2AUCV	Operating Temperature	-25°C ~ 70°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	25,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	Dust Proof	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	25,000 Cycles	Detailed Description	Rocker Switch DPST 10A (AC) 125V Panel Mount, Snap-In
Current Rating	10A (AC)	Color - Actuator/Cap	Black
Circuit	DPST	Actuator Type	Concave (Curved)
Actuator Marking	O -
