NKK Switches

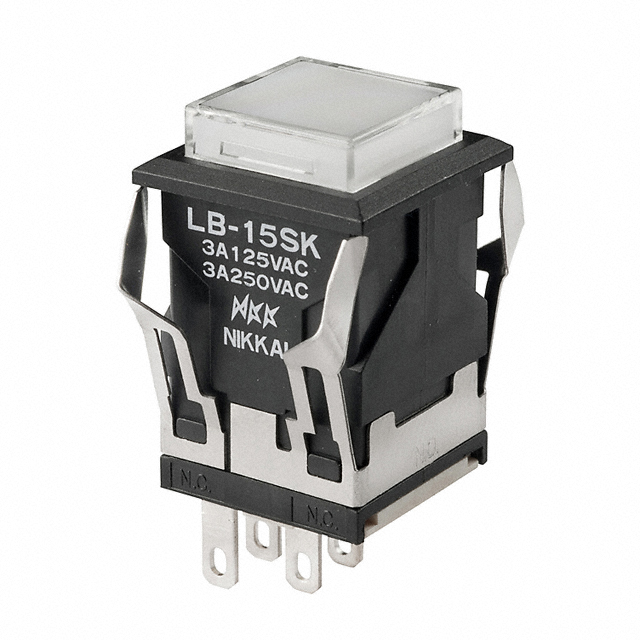

| Part Number | LB15SKW01-5D05-JB | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH PUSHBUTTON SPDT 3A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4823 pcs | Data sheet | LB15SKW01-5D05-JB.pdf |
| Voltage Rating - DC | 30V | Voltage Rating - AC | 125V |
| Type | Standard, Illuminated | Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Switch Function | On-Mom | Series | LB |
| Panel Cutout Dimensions | Square - 16.20mm² | Packaging | Bulk |
| Other Names | LB15SKW01-5D05-JB-RO LB15SKW01-5D05-JB-RO-ND LB15SKW015D05JB |
Operating Temperature | -25°C ~ 50°C |
| Mounting Type | Panel Mount, Snap-In | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000,000 Cycles | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | 5 VDC |
| Illumination Type, Color | LED, Amber | Features | - |
| Electrical Life | 100,000 Cycles | Detailed Description | Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In |
| Current Rating | 3A (AC/DC) | Color - Actuator/Cap | Clear (White Filter/Diffuser) |
| Circuit | SPDT | Actuator Type | Square, Button |
