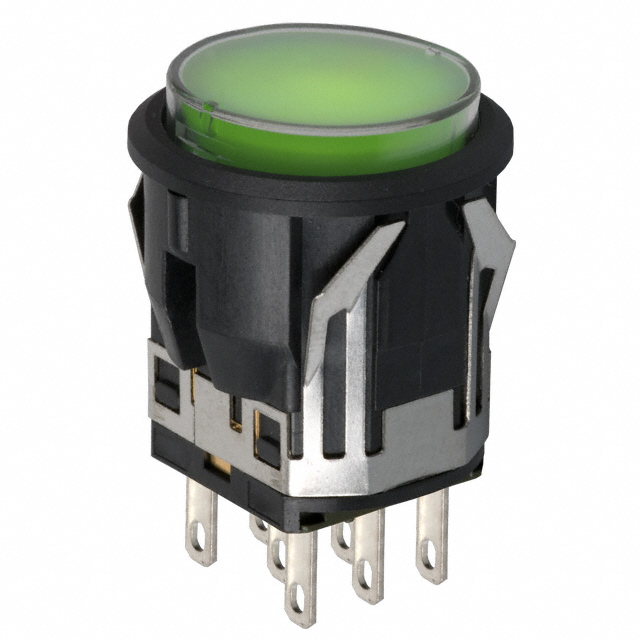

NKK Switches
| Part Number | LB26CKW01-5F-JF | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH PUSHBUTTON DPDT 3A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6716 pcs | Data sheet | LB26CKW01-5F-JF.pdf |
| Voltage Rating - DC | 30V | Voltage Rating - AC | 125V |
| Type | Standard, Illuminated | Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Switch Function | On-On | Series | LB |
| Panel Cutout Dimensions | Circular - 22.00mm Dia | Packaging | Bulk |
| Other Names | 360-1666 360-2049 36O-1666-ND LB26CKW01-5F-JF-RO LB26CKW015FJF |
Operating Temperature | -25°C ~ 50°C |
| Mounting Type | Panel Mount, Snap-In | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 200,000 Cycles | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | 2.1 VDC |
| Illumination Type, Color | LED, Green | Features | - |
| Electrical Life | 100,000 Cycles | Detailed Description | Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In |
| Current Rating | 3A (AC/DC) | Color - Actuator/Cap | Clear (Green Filter/Diffuser) |
| Circuit | DPDT | Actuator Type | Round, Button |
