M2023TJW01-FA-1A

NKK SwitchesNKK Switches

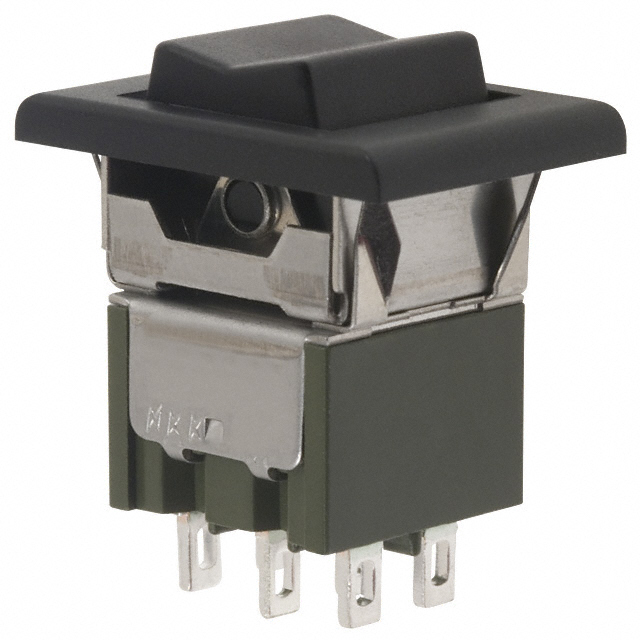

M2023TJW01-FA-1A Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: M2023TJW01-FA-1A
Manufacturer/Brand: NKK Switches
Product description SWITCH ROCKER DPDT 6A 125V
Datasheets: M2023TJW01-FA-1A.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 14987 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 14987 pcs
Reference Price (In US Dollars)
1 pcs
$2.473
10 pcs
$2.29
25 pcs
$2.17
50 pcs
$2.14
100 pcs
$2.109
250 pcs
$2.049
500 pcs
$1.868
1000 pcs
$1.688
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$2.473

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of M2023TJW01-FA-1A

Part Number M2023TJW01-FA-1A Manufacturer NKK Switches
Description SWITCH ROCKER DPDT 6A 125V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 14987 pcs Data sheet M2023TJW01-FA-1A.pdf
Voltage Rating - DC 30V Voltage Rating - AC 125V
Termination Style Solder Lug Switch Function On-Off-On
Series M Panel Cutout Dimensions Rectangular - 15.90mm x 13.10mm
Packaging Bulk Other Names 360-2271
M2023TJW01-FA-1A-ND
M2023TJW01FA1A
Operating Temperature -30°C ~ 85°C Mounting Type Panel Mount, Snap-In
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mechanical Life 50,000 Cycles
Lead Free Status / RoHS Status Lead free / RoHS Compliant Ingress Protection -
Illumination Voltage (Nominal) - Illumination Type, Color -
Features Epoxy Sealed Terminals Electrical Life 25,000 Cycles
Detailed Description Rocker Switch DPDT 6A (AC), 3A (DC) 125V Panel Mount, Snap-In Current Rating 6A (AC), 3A (DC)
Color - Actuator/Cap Black Circuit DPDT
Actuator Type Concave (Standard V) Actuator Marking No Marking
