M2032S2A1W01

NKK Switches

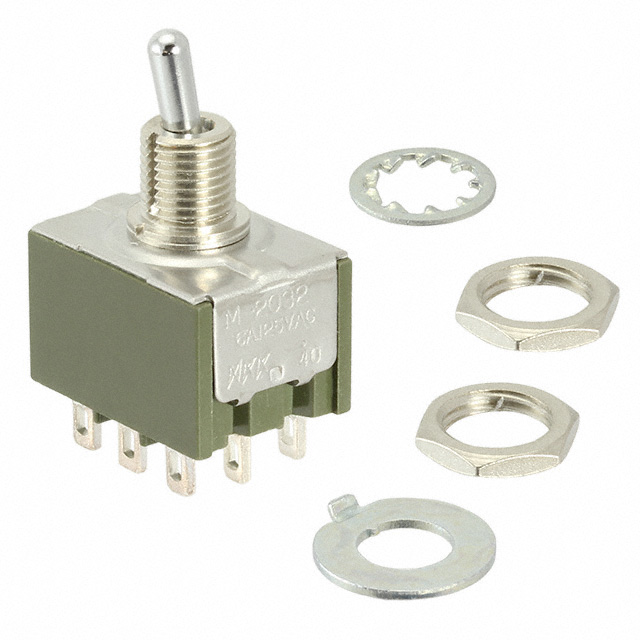

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M2032S2A1W01
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TOGGLE 3PDT 6A 125V
Datasheets:	M2032S2A1W01.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13079 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 13079 pcs

Reference Price (In US Dollars)

1 pcs: $2.585

10 pcs: $2.456

25 pcs: $2.391

50 pcs: $2.326

100 pcs: $2.262

250 pcs: $2.133

500 pcs: $1.809

1000 pcs: $1.713

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.585

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M2032S2A1W01

Part Number	M2032S2A1W01	Manufacturer	NKK Switches
Description	SWITCH TOGGLE 3PDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13079 pcs	Data sheet	M2032S2A1W01.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-On
Series	M	Panel Cutout Dimensions	Circular - 6.50mm Dia
Packaging	Bulk	Operating Temperature	-30°C ~ 85°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Epoxy Sealed Terminals
Electrical Life	25,000 Cycles	Detailed Description	Toggle Switch 3PDT Panel Mount
Current Rating	6A (AC), 4A (DC)	Circuit	3PDT
Bushing Thread	1/4-40	Actuator Type	Standard Round
Actuator Material	Brass, Chrome Plated	Actuator Length	6.86mm
