MS22ANG03/U

NKK Switches

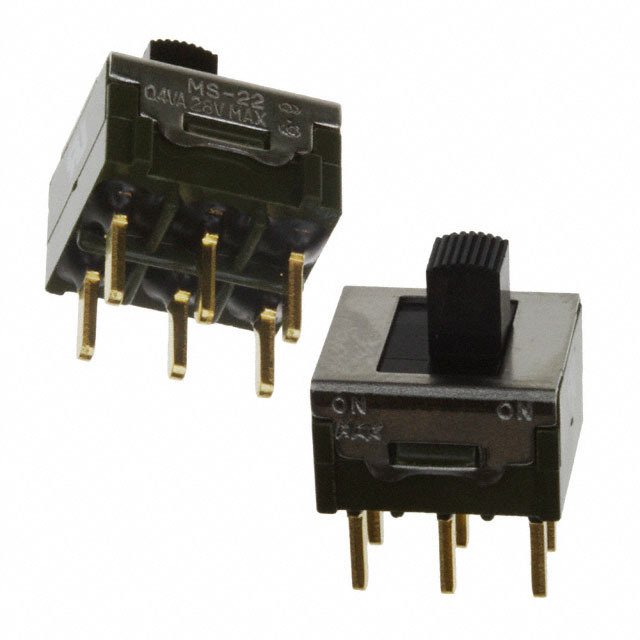

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MS22ANG03/U
Manufacturer/Brand:	NKK Switches
Product description	SWITCH SLIDE DPDT 0.4VA 28V
Datasheets:	MS22ANG03/U.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17799 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 17799 pcs

Reference Price (In US Dollars)

1 pcs: $2.132

10 pcs: $2.086

25 pcs: $1.994

50 pcs: $1.762

100 pcs: $1.739

250 pcs: $1.715

500 pcs: $1.414

1000 pcs: $1.321

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.132

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MS22ANG03/U

Part Number	MS22ANG03/U	Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17799 pcs	Data sheet	MS22ANG03/U.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	28V
Termination Style	PC Pin	Switch Travel	2.20mm
Switch Function	On-On	Series	MS
Packaging	Bulk	Other Names	MS22ANG03U
Operating Temperature	-30°C ~ 85°C	Operating Force	-
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Epoxy Sealed Terminals	Electrical Life	50,000 Cycles
Detailed Description	Slide Switch DPDT Through Hole	Current Rating	0.4VA (AC/DC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Copper
Contact Finish	Gold	Circuit	DPDT
Actuator Type	Standard	Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Length	5.10mm
