NP0115AG03LCF-JCF12

NKK Switches

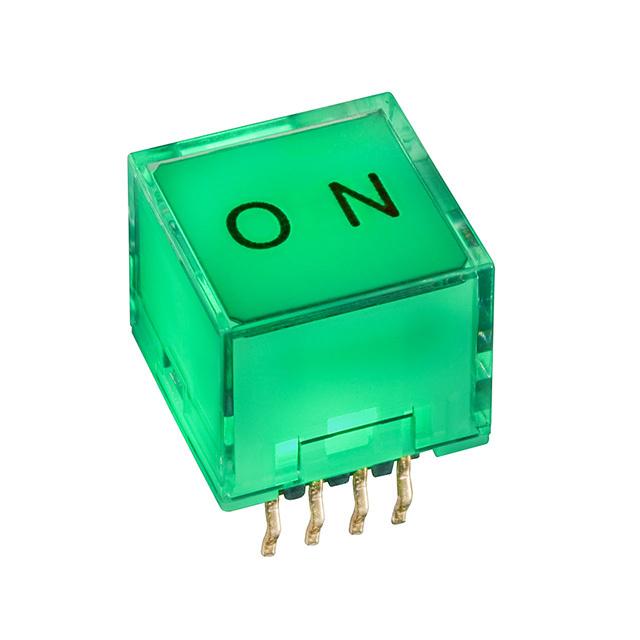

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NP0115AG03LCF-JCF12
Manufacturer/Brand:	NKK Switches
Product description	SWITCH PUSH SPST-NO 0.4VA 28V
Datasheets:	NP0115AG03LCF-JCF12.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4104 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4104 pcs

Reference Price (In US Dollars)

1 pcs: $9.16

10 pcs: $9.027

25 pcs: $8.896

50 pcs: $8.242

100 pcs: $8.111

250 pcs: $7.196

500 pcs: $6.934

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$9.16

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NP0115AG03LCF-JCF12

Part Number	NP0115AG03LCF-JCF12	Manufacturer	NKK Switches
Description	SWITCH PUSH SPST-NO 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4104 pcs	Data sheet	NP0115AG03LCF-JCF12.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	28V
Type	Standard, Illuminated	Termination Style	PC Pin
Switch Function	Off-Mom	Series	NP01
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	360-3601	Operating Temperature	-25°C ~ 50°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	500,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	2.0, 3.5 VDC
Illumination Type, Color	LED, Red/Green	Features	ON/OFF Symbol
Electrical Life	500,000 Cycles	Detailed Description	Pushbutton Switch SPST-NO Standard, Illuminated Through Hole
Current Rating	0.4VA (AC/DC)	Color - Actuator/Cap	Green, Red
Circuit	SPST-NO	Actuator Type	Square, Button, Alternating Legend
