NP0115HG03LD-JD

NKK SwitchesNKK Switches

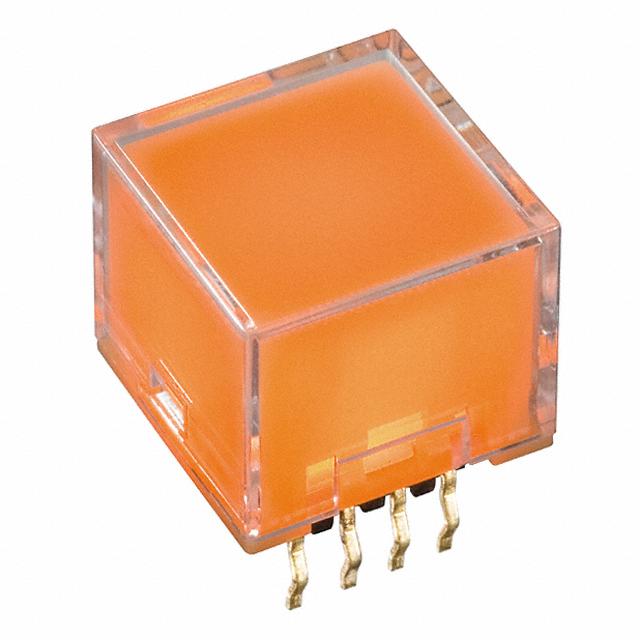

NP0115HG03LD-JD Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: NP0115HG03LD-JD
Manufacturer/Brand: NKK Switches
Product description SWITCH PUSH SPST-NO 0.4VA 28V
Datasheets: NP0115HG03LD-JD.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 12863 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 12863 pcs
Reference Price (In US Dollars)
1 pcs
$2.339
10 pcs
$2.169
25 pcs
$2.112
50 pcs
$2.055
100 pcs
$1.94
250 pcs
$1.883
500 pcs
$1.769
1000 pcs
$1.598
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$2.339

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of NP0115HG03LD-JD

Part Number NP0115HG03LD-JD Manufacturer NKK Switches
Description SWITCH PUSH SPST-NO 0.4VA 28V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 12863 pcs Data sheet NP0115HG03LD-JD.pdf
Voltage Rating - DC 28V Voltage Rating - AC 28V
Type Standard, Illuminated Termination Style PC Pin
Switch Function Off-Mom Series NP01
Panel Cutout Dimensions - Packaging Bulk
Other Names NP0115HG03LDJD
NPO115HG03LD-JD
Operating Temperature -25°C ~ 50°C
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Mechanical Life 500,000 Cycles Lead Free Status / RoHS Status Lead free / RoHS Compliant
Ingress Protection - Illumination Voltage (Nominal) 2.1 VDC
Illumination Type, Color LED, Amber Features -
Electrical Life 500,000 Cycles Detailed Description Pushbutton Switch SPST-NO Standard, Illuminated Through Hole
Current Rating 0.4VA (AC/DC) Color - Actuator/Cap Clear (Amber Filter/Diffuser)
Circuit SPST-NO Actuator Type Square, Button
