S6F

NKK Switches

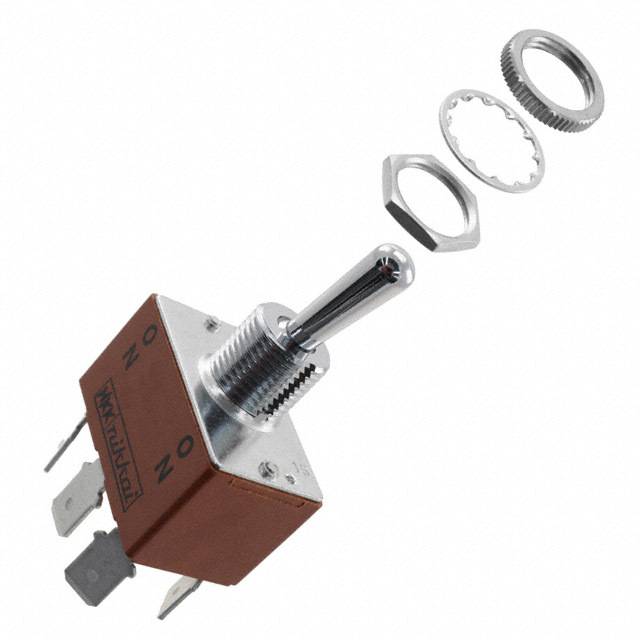

Image may be representation. See specifications for product details.

Product Overview

Part Number:	S6F
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TOGGLE DPDT 20A 125V
Datasheets:	S6F.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12454 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 12454 pcs

Reference Price (In US Dollars)

1 pcs: $2.69

10 pcs: $2.619

25 pcs: $2.548

50 pcs: $2.406

100 pcs: $2.335

250 pcs: $2.265

500 pcs: $1.911

1000 pcs: $1.84

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.69

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of S6F

Part Number	S6F	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12454 pcs	Data sheet	S6F.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-On
Series	S	Panel Cutout Dimensions	Circular - 12.50mm Dia
Packaging	Bulk	Other Names	360-1210 360-1210-ND 360-1929 S6F-RO
Operating Temperature	-10°C ~ 70°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	-	Electrical Life	25,000 Cycles
Detailed Description	Toggle Switch DPDT Panel Mount	Current Rating	20A (AC/DC)
Circuit	DPDT	Bushing Thread	M12 x 1
Actuator Type	Standard Round	Actuator Material	Brass, Chrome Plated
Actuator Length	17.50mm
