17PY-Z053-00VS

NMB Technologies Corp.

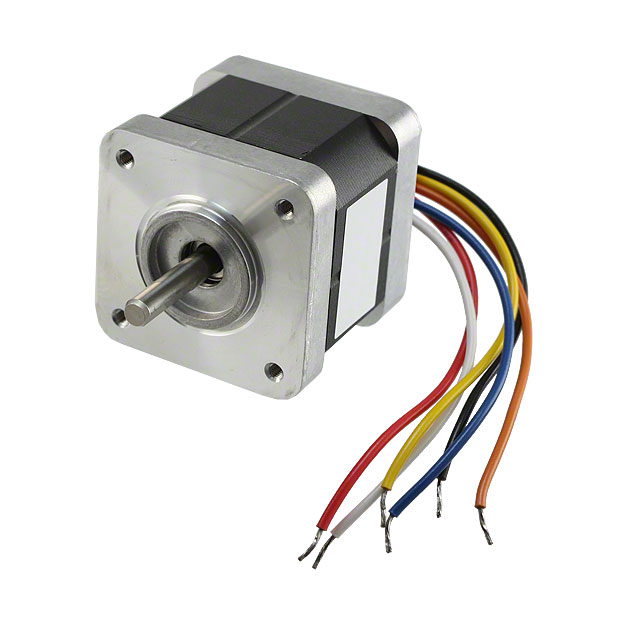

Image may be representation. See specifications for product details.

Product Overview

Part Number:	17PY-Z053-00VS
Manufacturer/Brand:	NMB Technologies Corp.
Product description	STEP MOTOR HYBRID UNIPOLAR 24V
Datasheets:	1.17PY-Z053-00VS.pdf 2.17PY-Z053-00VS.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1777 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1777 pcs

Reference Price (In US Dollars)

1 pcs: $17.273

5 pcs: $16.974

10 pcs: $16.677

25 pcs: $16.379

50 pcs: $16.081

100 pcs: $15.843

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$17.273

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 17PY-Z053-00VS

Part Number	17PY-Z053-00VS	Manufacturer	NMB Technologies Corp.
Description	STEP MOTOR HYBRID UNIPOLAR 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1777 pcs	Data sheet	1.17PY-Z053-00VS.pdf 2.17PY-Z053-00VS.pdf
Weight	0.441 lb (200.03g)	Voltage - Rated	24VDC
Type	Hybrid	Torque - Holding (oz-in / mNm)	22.7 / 160
Termination Style	Wire Leads with Connector	Steps per Revolution	400
Step Angle	0.9°	Size / Dimension	Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Series	17PY	Rotor Inertia	37gcm²
Other Names	17PYZ05300VS P14295	Operating Temperature	-10°C ~ 50°C
NEMA Frame Size	17	Mounting Hole Spacing	1.220" (31.00mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Length - Shaft and Bearing	0.787" (20.00mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Flatted Shaft
Diameter - Shaft	0.197" (5.00mm)	Detailed Description	Unipolar Stepper Motor 400 Step 0.85A 24VDC
Current Rating	850mA	Coil Type	Unipolar
Coil Resistance	4.2 Ohms	Approvals	-
Accuracy	±5%
