23KM-K748-00V

NMB Technologies Corp.

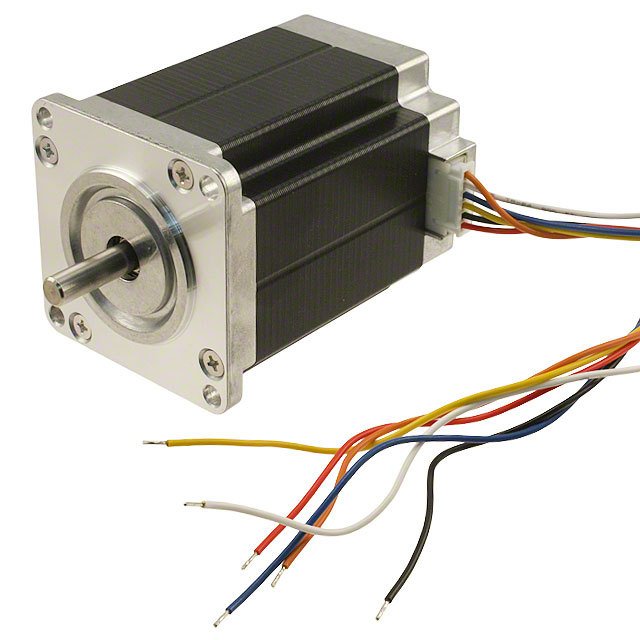

Image may be representation. See specifications for product details.

Product Overview

Part Number:	23KM-K748-00V
Manufacturer/Brand:	NMB Technologies Corp.
Product description	STEP MOTOR HYBRID UNIPOLAR 24V
Datasheets:	1.23KM-K748-00V.pdf 2.23KM-K748-00V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1193 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1193 pcs

Reference Price (In US Dollars)

1 pcs: $27.915

5 pcs: $27.424

10 pcs: $26.934

25 pcs: $26.444

50 pcs: $26.052

100 pcs: $25.465

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$27.915

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 23KM-K748-00V

Part Number	23KM-K748-00V	Manufacturer	NMB Technologies Corp.
Description	STEP MOTOR HYBRID UNIPOLAR 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1193 pcs	Data sheet	1.23KM-K748-00V.pdf 2.23KM-K748-00V.pdf
Weight	2.3 lbs (1kg)	Voltage - Rated	24VDC
Type	Hybrid	Torque - Holding (oz-in / mNm)	198.28 / 1400
Termination Style	Wire Leads with Connector	Steps per Revolution	200
Step Angle	1.8°	Size / Dimension	Square - 2.220" x 2.220" (56.40mm x 56.40mm)
Series	23KM	Rotor Inertia	360gcm²
Other Names	23KMK74800V P14291	Operating Temperature	-10°C ~ 50°C
NEMA Frame Size	23	Mounting Hole Spacing	1.856" (47.14mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Length - Shaft and Bearing	0.984" (25.00mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Flatted Shaft
Diameter - Shaft	0.250" (6.35mm)	Detailed Description	Unipolar Stepper Motor Frame Size 23 200 Step 2A 24VDC
Current Rating	2A	Coil Type	Unipolar
Coil Resistance	2.3 Ohms	Approvals	-
Accuracy	±5%
