29SM-K250-00V

NMB Technologies Corp.

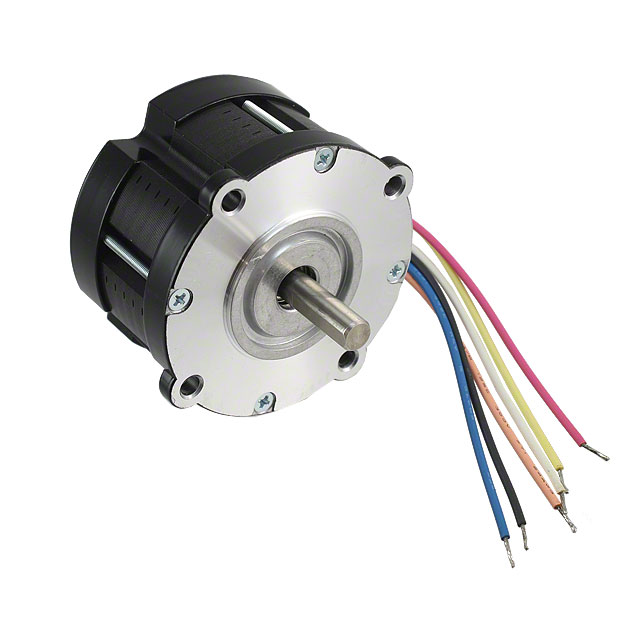

Image may be representation. See specifications for product details.

Product Overview

Part Number:	29SM-K250-00V
Manufacturer/Brand:	NMB Technologies Corp.
Product description	STEP MOTOR HYBRID UNIPOLAR 24V
Datasheets:	1.29SM-K250-00V.pdf 2.29SM-K250-00V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1070 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1070 pcs

Reference Price (In US Dollars)

1 pcs: $28.445

5 pcs: $27.945

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$28.445

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 29SM-K250-00V

Part Number	29SM-K250-00V	Manufacturer	NMB Technologies Corp.
Description	STEP MOTOR HYBRID UNIPOLAR 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1070 pcs	Data sheet	1.29SM-K250-00V.pdf 2.29SM-K250-00V.pdf
Weight	1.5 lbs (680.4g)	Voltage - Rated	24VDC
Type	Hybrid	Torque - Holding (oz-in / mNm)	82.15 / 580
Termination Style	Wire Leads	Steps per Revolution	200
Step Angle	1.8°	Size / Dimension	Round - 2.795" Dia (71.00mm)
Series	29SM	Rotor Inertia	220gcm²
Other Names	29SMK25000V P14307	Operating Temperature	-10°C ~ 50°C
Mounting Hole Spacing	1.856" (47.14mm)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Length - Shaft and Bearing	0.984" (25.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Round Shaft	Diameter - Shaft	0.315" (8.00mm)
Detailed Description	Unipolar Stepper Motor Hybrid 1.6A 24VDC	Current Rating	1.6A
Coil Type	Unipolar	Coil Resistance	2 Ohms
Approvals	-	Accuracy	±5%
