PG15S-D20-HHB9

NMB Technologies Corp.

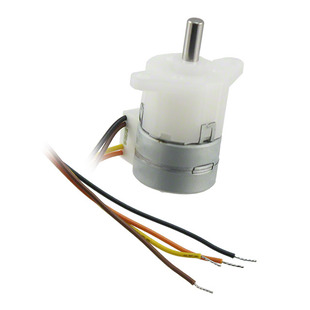

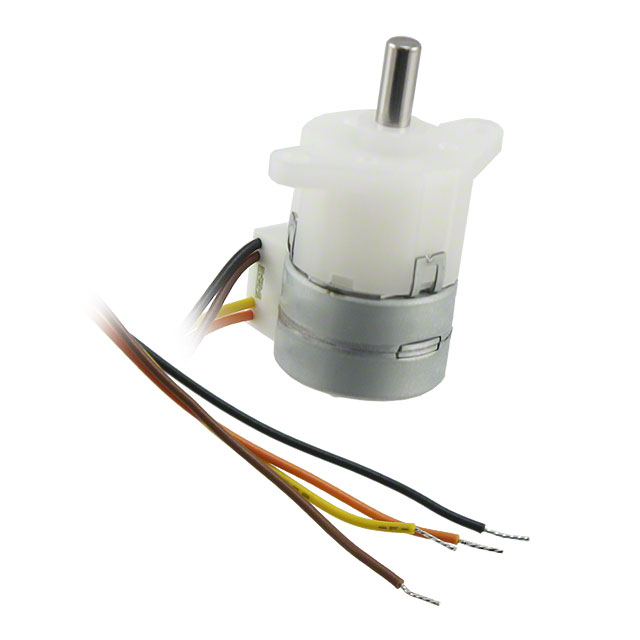

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PG15S-D20-HHB9
Manufacturer/Brand:	NMB Technologies Corp.
Product description	STEP MOTOR PM GEARED BIPOLAR 15V
Datasheets:	1.PG15S-D20-HHB9.pdf 2.PG15S-D20-HHB9.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2790 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2790 pcs

Reference Price (In US Dollars)

1 pcs: $12.858

5 pcs: $12.638

10 pcs: $12.416

25 pcs: $12.194

50 pcs: $11.972

100 pcs: $11.795

250 pcs: $11.529

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$12.858

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PG15S-D20-HHB9

Part Number	PG15S-D20-HHB9	Manufacturer	NMB Technologies Corp.
Description	STEP MOTOR PM GEARED BIPOLAR 15V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2790 pcs	Data sheet	1.PG15S-D20-HHB9.pdf 2.PG15S-D20-HHB9.pdf
Weight	0.029 lb (13.15g)	Voltage - Rated	15VDC
Type	Permanent Magnet Gear Motor	Torque - Holding (oz-in / mNm)	21.2 / 150
Termination Style	Wire Leads	Steps per Revolution	2048
Step Angle	0.176°	Size / Dimension	Round - 0.591" Dia (15.00mm)
Series	PG	Rotor Inertia	-
Other Names	P14333 PG15S-D20-HHB9B PG15S-D20-HHB9D PG15S-D20-X102 PG15S-D20-X102-ND PG15SD20HHB9	Operating Temperature	-
Mounting Hole Spacing	0.787" (20.00mm)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Length - Shaft and Bearing	0.354" (9.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Round Shaft	Diameter - Shaft	0.118" (3.00mm)
Detailed Description	Bipolar Stepper Motor 100mA 15VDC	Current Rating	100mA
Coil Type	Bipolar	Coil Resistance	10 Ohms
Approvals	-	Accuracy	-
