PG35S-D48-HHC2

NMB Technologies Corp.

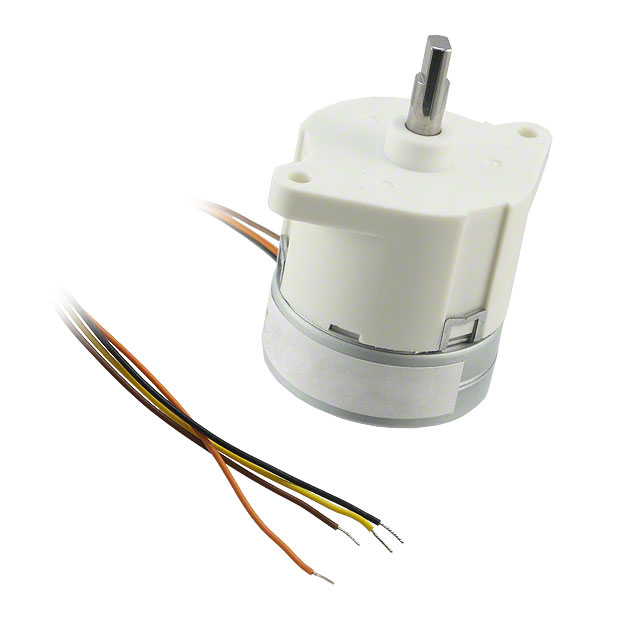

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PG35S-D48-HHC2
Manufacturer/Brand:	NMB Technologies Corp.
Product description	STEP MOTOR PM GEARED BIPOLAR 24V
Datasheets:	1.PG35S-D48-HHC2.pdf 2.PG35S-D48-HHC2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2423 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2423 pcs

Reference Price (In US Dollars)

1 pcs: $12.858

5 pcs: $12.638

10 pcs: $12.416

25 pcs: $12.194

50 pcs: $11.972

100 pcs: $11.795

250 pcs: $11.529

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$12.858

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PG35S-D48-HHC2

Part Number	PG35S-D48-HHC2	Manufacturer	NMB Technologies Corp.
Description	STEP MOTOR PM GEARED BIPOLAR 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2423 pcs	Data sheet	1.PG35S-D48-HHC2.pdf 2.PG35S-D48-HHC2.pdf
Weight	-	Voltage - Rated	24VDC
Type	Permanent Magnet Gear Motor	Torque - Holding (oz-in / mNm)	99.1 / 700
Termination Style	Wire Leads	Steps per Revolution	1698
Step Angle	0.212°	Size / Dimension	Round - 1.378" Dia (35.00mm)
Series	PG	Rotor Inertia	-
Other Names	P14336 PG35S-D48-HHC2B PG35SD48HHC2	Operating Temperature	-
Mounting Hole Spacing	1.650" (42.00mm)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Length - Shaft and Bearing	0.709" (18.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Double Flatted Shaft	Diameter - Shaft	0.197" (5.00mm)
Detailed Description	Bipolar Stepper Motor 250mA 24VDC	Current Rating	250mA
Coil Type	Bipolar	Coil Resistance	28 Ohms
Approvals	-	Accuracy	-
