PM35L-048-HHC7

NMB Technologies Corp.

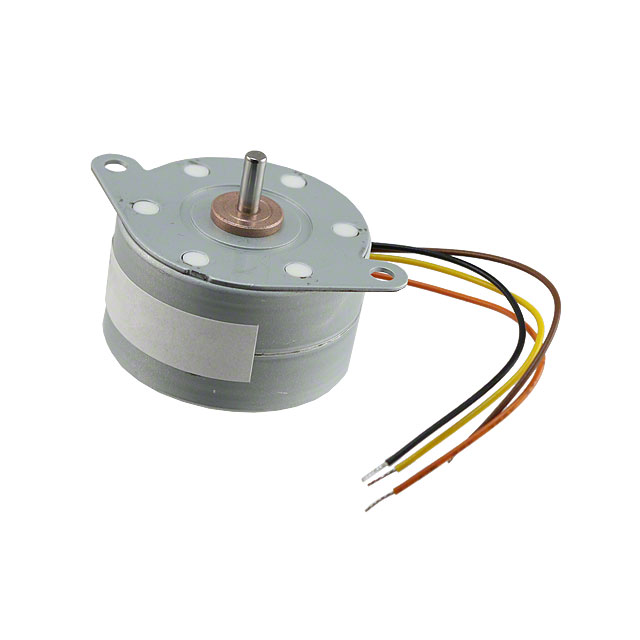

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PM35L-048-HHC7
Manufacturer/Brand:	NMB Technologies Corp.
Product description	STEPPER MOTOR PM BIPOLAR 24V
Datasheets:	1.PM35L-048-HHC7.pdf 2.PM35L-048-HHC7.pdf 3.PM35L-048-HHC7.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2745 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2745 pcs

Reference Price (In US Dollars)

1 pcs: $12.858

5 pcs: $12.638

10 pcs: $12.416

25 pcs: $12.194

50 pcs: $11.972

100 pcs: $11.795

250 pcs: $11.529

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$12.858

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PM35L-048-HHC7

Part Number	PM35L-048-HHC7	Manufacturer	NMB Technologies Corp.
Description	STEPPER MOTOR PM BIPOLAR 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2745 pcs	Data sheet	1.PM35L-048-HHC7.pdf 2.PM35L-048-HHC7.pdf 3.PM35L-048-HHC7.pdf
Weight	-	Voltage - Rated	24VDC
Type	Permanent Magnet	Torque - Holding (oz-in / mNm)	6.9 / 49
Termination Style	Wire Leads	Steps per Revolution	48
Step Angle	7.5°	Size / Dimension	Round - 1.378" Dia (35.00mm)
Series	PM	Rotor Inertia	-
Other Names	P14341 PM35L048HHC7	Operating Temperature	-
Mounting Hole Spacing	1.650" (42.00mm)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Length - Shaft and Bearing	0.394" (10.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Round Shaft	Diameter - Shaft	0.118" (3.00mm)
Detailed Description	Bipolar Stepper Motor 600mA 24VDC	Current Rating	600mA
Coil Type	Bipolar	Coil Resistance	5.5 Ohms
Approvals	-	Accuracy	-
