IL610A-3E

NVE Corporation

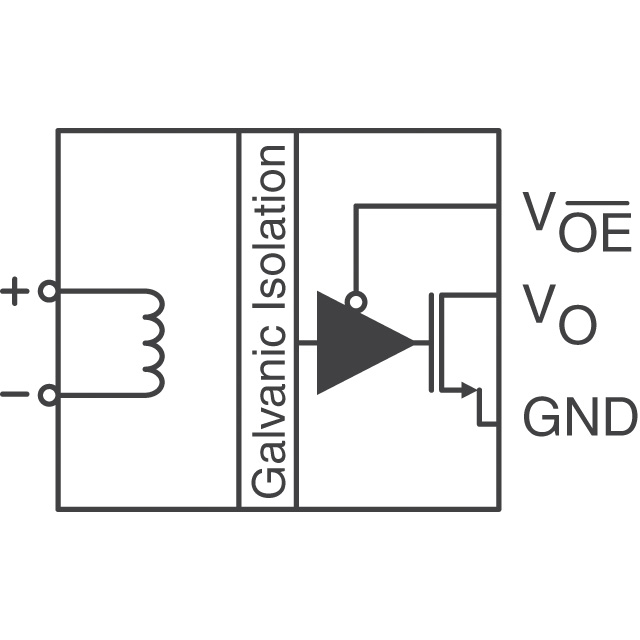

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IL610A-3E
Manufacturer/Brand:	NVE Corporation
Product description	DGTL ISO 2.5KV GEN PURP 8SOIC
Datasheets:	IL610A-3E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	18731 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 18731 pcs

Reference Price (In US Dollars)

1 pcs: $1.644

10 pcs: $1.466

25 pcs: $1.32

100 pcs: $1.202

300 pcs: $1.085

500 pcs: $0.974

1000 pcs: $0.821

2500 pcs: $0.78

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.644

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IL610A-3E

Part Number	IL610A-3E	Manufacturer	NVE Corporation
Description	DGTL ISO 2.5KV GEN PURP 8SOIC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18731 pcs	Data sheet	IL610A-3E.pdf
Voltage - Supply	3 V ~ 5.5 V	Voltage - Isolation	2500Vrms
Type	General Purpose	Technology	GMR (Giant Magnetoresistive)
Supplier Device Package	8-SOIC	Series	IsoLoop®
Rise / Fall Time (Typ)	10µs, 10µs (Max)	Pulse Width Distortion (Max)	-
Propagation Delay tpLH / tpHL (Max)	75ns, 25ns	Packaging	Tube
Package / Case	8-SOIC (0.154", 3.90mm Width)	Other Names	390-1080-5 IL610A3E
Operating Temperature	-40°C ~ 85°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Isolated Power	No
Inputs - Side 1/Side 2	1/0	Detailed Description	General Purpose Digital Isolator 2500Vrms 1 Channel 10Mbps 15kV/µs CMTI 8-SOIC (0.154", 3.90mm Width)
Data Rate	10Mbps	Common Mode Transient Immunity (Min)	15kV/µs
Channel Type	Unidirectional
