HomeProductsOptoelectronicsDisplay Modules - Vacuum Fluorescent (VFD)M0224SD-242MDBR1-1

M0224SD-242MDBR1-1

Newhaven Display, Intl.Newhaven Display, Intl.

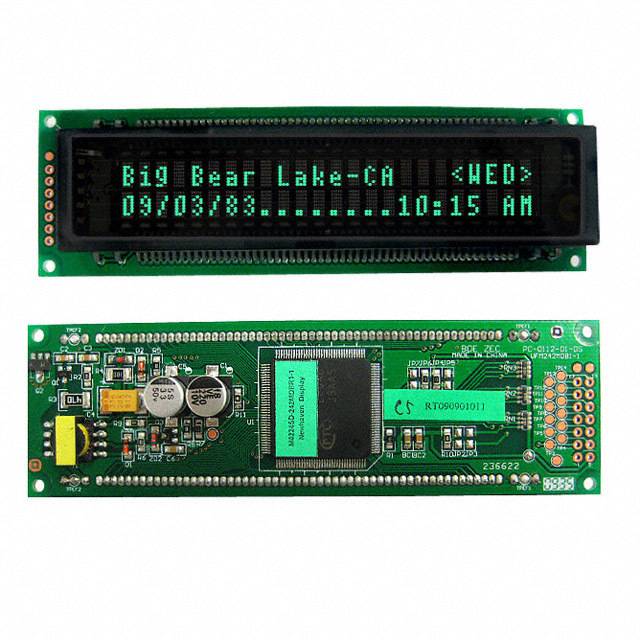

M0224SD-242MDBR1-1 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: M0224SD-242MDBR1-1
Manufacturer/Brand: Newhaven Display, Intl.
Product description MODULE VF CHAR 2X24 5.34MM
Datasheets: M0224SD-242MDBR1-1.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 3222 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 3222 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of M0224SD-242MDBR1-1

Part Number M0224SD-242MDBR1-1 Manufacturer Newhaven Display, Intl.
Description MODULE VF CHAR 2X24 5.34MM Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 3222 pcs Data sheet M0224SD-242MDBR1-1.pdf
Voltage - Supply 4.5 V ~ 5.5 V Viewing Area 84.20mm L x 11.50mm W
Series - Outline L x W x H 118.00mm x 36.00mm x 16.50mm
Other Names M0224SD-242MDBR1-2
M0224SD-242MDBR1-2-ND		 Operating Temperature -20°C ~ 70°C
Number of Dots - Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Interface Parallel
Format 5 x 8 Dots Display Type Character
Display Format 24 x 2 Detailed Description Vacuum Fluorescent Display (VFD) 24 x 2 Character 4.5 V ~ 5.5 V Parallel 118.00mm x 36.00mm x 16.50mm
Character Size 5.29mm H x 2.10mm W
