NHD-0216CW-AG3

Newhaven Display, Intl.Newhaven Display, Intl.

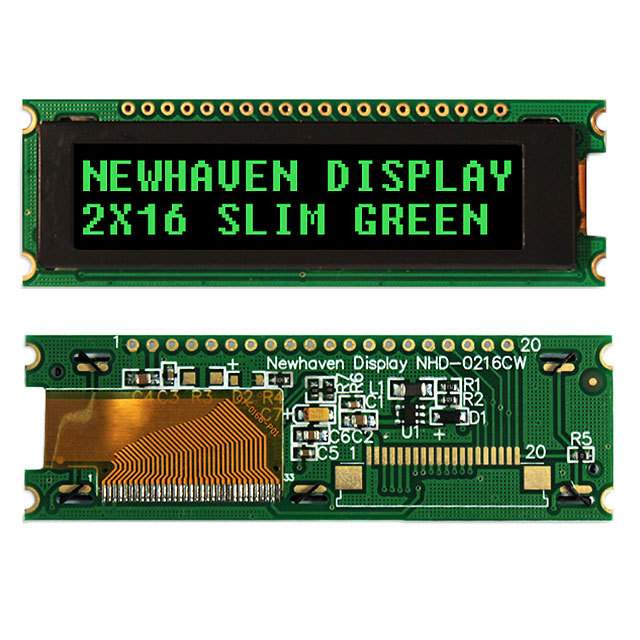

NHD-0216CW-AG3 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: NHD-0216CW-AG3
Manufacturer/Brand: Newhaven Display, Intl.
Product description OLED MOD CHAR 2X16
Datasheets: NHD-0216CW-AG3.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 3326 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 3326 pcs
Reference Price (In US Dollars)
1 pcs
$9.307
5 pcs
$8.749
10 pcs
$8.19
50 pcs
$7.725
100 pcs
$7.353
250 pcs
$6.981
500 pcs
$6.701
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$9.307

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of NHD-0216CW-AG3

Part Number NHD-0216CW-AG3 Manufacturer Newhaven Display, Intl.
Description OLED MOD CHAR 2X16 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 3326 pcs Data sheet NHD-0216CW-AG3.pdf
Voltage - Supply 2.4 V ~ 5.5 V Viewing Area 58.22mm L x 13.52mm W
Text Color Green Series -
Outline L x W x H 76.00mm x 24.50mm x 2.50mm Operating Temperature -40°C ~ 85°C
Number of Characters 32 Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Interface Parallel, 8-Bit, I²C, SPI
Dot Size 0.57mm W x 0.67mm H Display Type OLED
Display Mode Passive Display Format 16 x 2
Detailed Description Character LCD Display Module Passive 5 x 8 Dots OLED Parallel, 8-Bit, I²C, SPI 76.00mm x 24.50mm x 2.50mm Character Size 5.57mm H x 2.97mm W
Character Format 5 x 8 Dots Backlight -
Background Color Black
