NHD-0220CW-AG3

Newhaven Display, Intl.Newhaven Display, Intl.

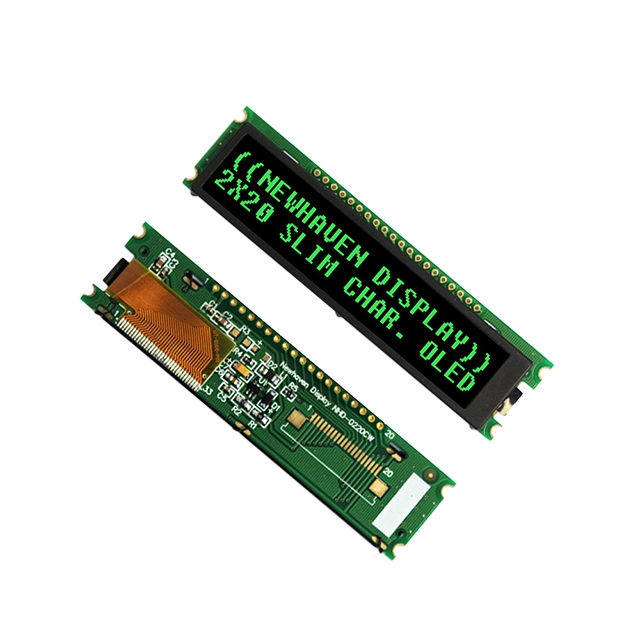

NHD-0220CW-AG3 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: NHD-0220CW-AG3
Manufacturer/Brand: Newhaven Display, Intl.
Product description OLED MOD CHAR 2X20
Datasheets: NHD-0220CW-AG3.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 2987 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 2987 pcs
Reference Price (In US Dollars)
1 pcs
$9.659
5 pcs
$9.079
10 pcs
$8.50
50 pcs
$8.017
100 pcs
$7.63
250 pcs
$7.244
500 pcs
$6.954
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$9.659

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of NHD-0220CW-AG3

Part Number NHD-0220CW-AG3 Manufacturer Newhaven Display, Intl.
Description OLED MOD CHAR 2X20 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 2987 pcs Data sheet NHD-0220CW-AG3.pdf
Voltage - Supply 2.4 V ~ 5.5 V Viewing Area 77.92mm L x 16.28mm W
Text Color Green Series -
Outline L x W x H 92.00mm x 23.30mm x 2.50mm Operating Temperature -40°C ~ 85°C
Number of Characters 40 Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Interface Parallel, 8-Bit, I²C, SPI
Dot Size 0.62mm W x 0.67mm H Display Type OLED
Display Mode Passive Display Format 20 x 2
Detailed Description Character LCD Display Module Passive 5 x 8 Dots OLED Parallel, 8-Bit, I²C, SPI 92.00mm x 23.30mm x 2.50mm Character Size 5.57mm H x 3.22mm W
Character Format 5 x 8 Dots Backlight -
Background Color Black
