EGPD101ELL511MM25H

Nippon Chemi-ConNippon Chemi-Con

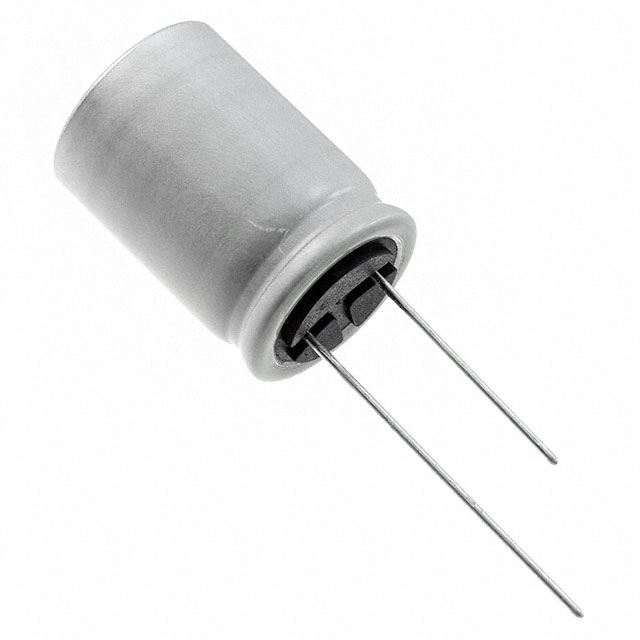

EGPD101ELL511MM25H Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: EGPD101ELL511MM25H
Manufacturer/Brand: Nippon Chemi-Con
Product description CAP ALUM 510UF 20% 100V RADIAL
Datasheets: EGPD101ELL511MM25H.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 27248 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 27248 pcs
Reference Price (In US Dollars)
1 pcs
$1.317
10 pcs
$1.062
100 pcs
$0.829
500 pcs
$0.616
1000 pcs
$0.574
2500 pcs
$0.553
5000 pcs
$0.551
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$1.317

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of EGPD101ELL511MM25H

Part Number EGPD101ELL511MM25H Manufacturer Nippon Chemi-Con
Description CAP ALUM 510UF 20% 100V RADIAL Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 27248 pcs Data sheet EGPD101ELL511MM25H.pdf
Voltage - Rated 100V Tolerance ±20%
Surface Mount Land Size - Size / Dimension 0.709" Dia (18.00mm)
Series GPD Ripple Current @ Low Frequency 1.46A @ 120Hz
Ripple Current @ High Frequency 2.92A @ 100kHz Ratings AEC-Q200
Polarization Polar Packaging Bulk
Package / Case Radial, Can Other Names 565-3828
Operating Temperature -40°C ~ 135°C Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lifetime @ Temp. 2000 Hrs @ 135°C
Lead Spacing 0.295" (7.50mm) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Height - Seated (Max) 1.043" (26.50mm) ESR (Equivalent Series Resistance) 45 mOhm @ 100kHz
Detailed Description 510µF 100V Aluminum Electrolytic Capacitors Radial, Can 45 mOhm @ 100kHz 2000 Hrs @ 135°C Capacitance 510µF
Applications Automotive
