TNP10SC20R0FE

OhmiteOhmite

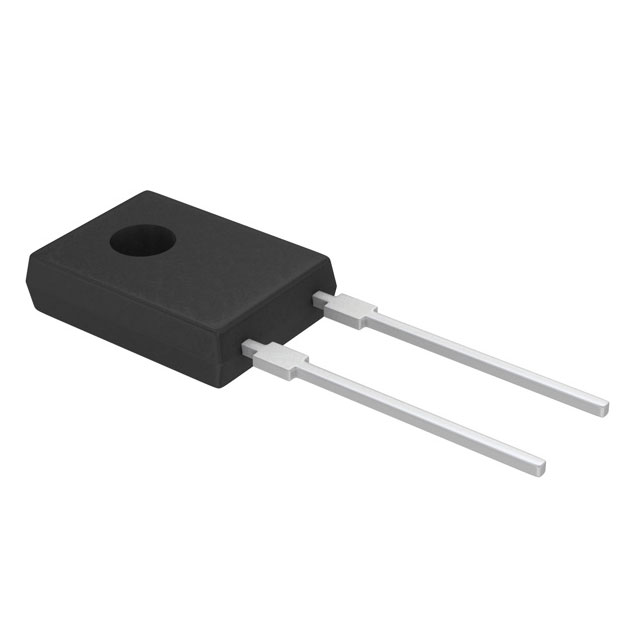

TNP10SC20R0FE Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: TNP10SC20R0FE
Manufacturer/Brand: Ohmite
Product description RES 20 OHM 10W 1% TO126
Datasheets: TNP10SC20R0FE.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 28140 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 28140 pcs
Reference Price (In US Dollars)
1 pcs
$1.292
60 pcs
$0.991
120 pcs
$0.853
1020 pcs
$0.637
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$1.292

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of TNP10SC20R0FE

Part Number TNP10SC20R0FE Manufacturer Ohmite
Description RES 20 OHM 10W 1% TO126 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 28140 pcs Data sheet TNP10SC20R0FE.pdf
Tolerance ±1% Temperature Coefficient ±50ppm/°C
Supplier Device Package TO-126 Size / Dimension 0.335" L x 0.122" W (8.50mm x 3.10mm)
Series TNP10 Resistance 20 Ohms
Power (Watts) 10W Packaging Tube
Package / Case TO-126-2 Operating Temperature -55°C ~ 155°C
Number of Terminations 2 Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height - Seated (Max) 0.598" (15.19mm)
Features Moisture Resistant, Non-Inductive Failure Rate -
Detailed Description 20 Ohms ±1% 10W Through Hole Resistor TO-126-2 Moisture Resistant, Non-Inductive Thin Film Composition Thin Film
