WA-T247-101E

Ohmite

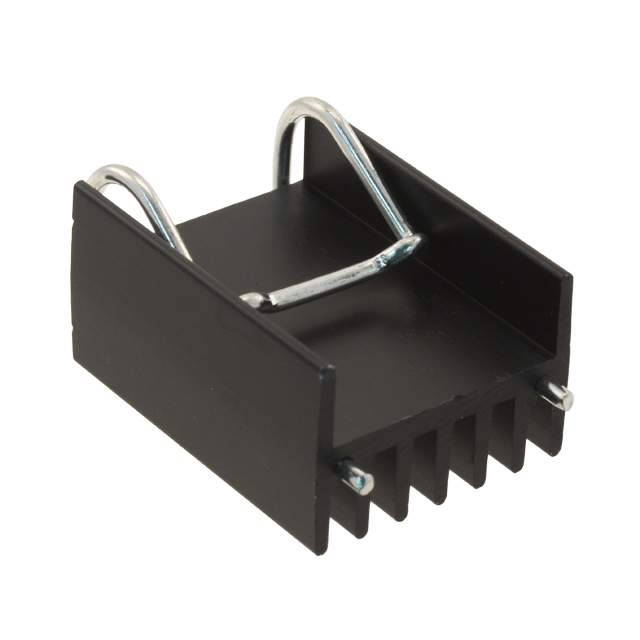

Image may be representation. See specifications for product details.

Product Overview

Part Number:	WA-T247-101E
Manufacturer/Brand:	Ohmite
Product description	HEATSINK AND CLIP FOR TO-247 BLK
Datasheets:	WA-T247-101E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	32397 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 32397 pcs

Reference Price (In US Dollars)

1 pcs: $0.889

10 pcs: $0.864

25 pcs: $0.841

50 pcs: $0.794

100 pcs: $0.747

250 pcs: $0.701

500 pcs: $0.677

1000 pcs: $0.607

5000 pcs: $0.596

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.889

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of WA-T247-101E

Part Number	WA-T247-101E	Manufacturer	Ohmite
Description	HEATSINK AND CLIP FOR TO-247 BLK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	32397 pcs	Data sheet	WA-T247-101E.pdf
Width	0.921" (23.40mm)	Type	Board Level, Vertical
Thermal Resistance @ Natural	7.00°C/W	Thermal Resistance @ Forced Air Flow	8.00°C/W @ 500 LFM
Shape	Rectangular, Fins	Series	W
Power Dissipation @ Temperature Rise	1.0W @ 20°C	Package Cooled	TO-247
Other Names	WAT247101E	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Finish	Black Anodized	Material	Aluminum
Length	1.260" (32.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Off Base (Height of Fin)	0.630" (16.00mm)	Diameter	-
Detailed Description	Heat Sink TO-247 Aluminum 1.0W @ 20°C Board Level, Vertical	Attachment Method	Clip and PC Pin
