Z-15GD-B7-K

Omron Automation & Safety

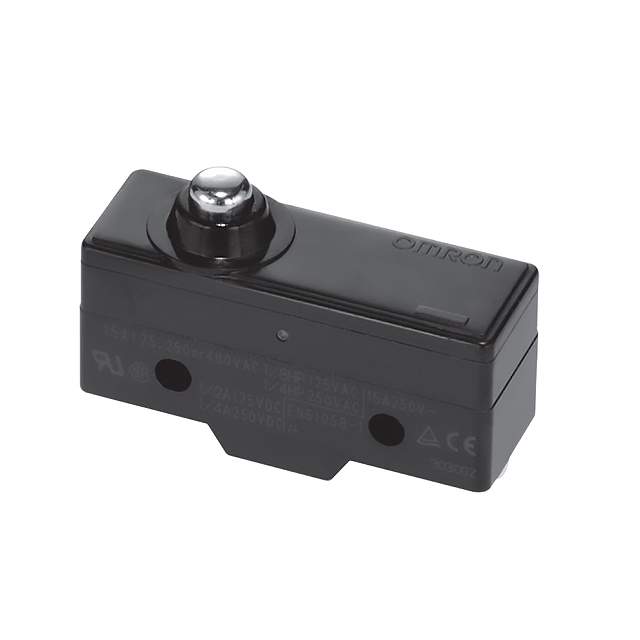

Image may be representation. See specifications for product details.

Product Overview

Part Number:	Z-15GD-B7-K
Manufacturer/Brand:	Omron Automation & Safety
Product description	SWITCH SNAP ACTION SPDT 15A 125V
Datasheets:	Z-15GD-B7-K.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6820 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 6820 pcs

Reference Price (In US Dollars)

1 pcs: $5.598

10 pcs: $4.342

25 pcs: $4.114

50 pcs: $3.886

100 pcs: $3.543

250 pcs: $3.314

500 pcs: $3.20

1000 pcs: $3.086

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$5.598

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of Z-15GD-B7-K

Part Number	Z-15GD-B7-K	Manufacturer	Omron Automation & Safety
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6820 pcs	Data sheet	Z-15GD-B7-K.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Screw Terminal	Switch Function	On-Mom
Series	Z	Release Force	114gf
Pretravel	0.015" (0.4mm)	Packaging	Bulk
Overtravel	0.062" (1.6mm)	Other Names	Z-15GD-B7-K-ND Z15GDB7K Z5749
Operating Temperature	-25°C ~ 80°C	Operating Position	0.846" (21.5mm)
Operating Force	250 ~ 350gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	20,000,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP00
Features	-	Electrical Life	500,000 Cycles
Differential Travel	0.002" (0.05mm)	Current Rating	15A (AC), 6A (DC)
Circuit	SPDT	Actuator Type	Round (Pin Plunger)
