Z-15GQA55-B5V

Omron Automation & Safety

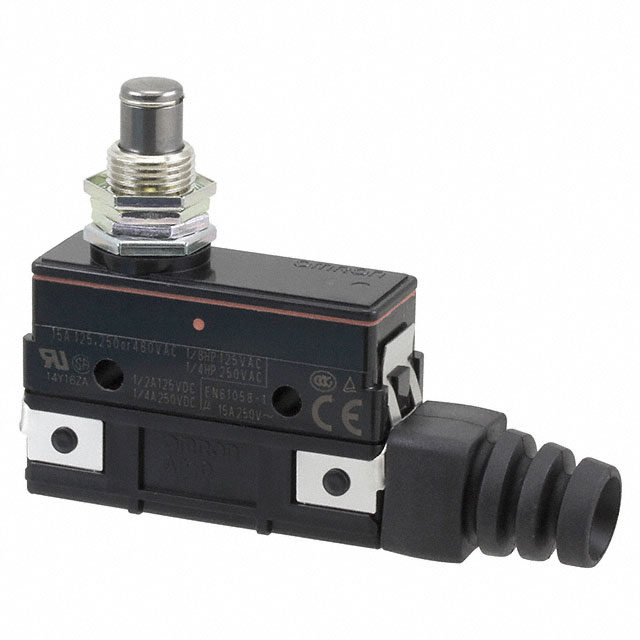

Image may be representation. See specifications for product details.

Product Overview

Part Number:	Z-15GQA55-B5V
Manufacturer/Brand:	Omron Automation & Safety
Product description	SWITCH SNAP ACTION SPDT 15A 125V
Datasheets:	Z-15GQA55-B5V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1206 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 1206 pcs

Reference Price (In US Dollars)

1 pcs: $24.037

10 pcs: $21.033

25 pcs: $19.23

50 pcs: $18.028

100 pcs: $17.127

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$24.037

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of Z-15GQA55-B5V

Part Number	Z-15GQA55-B5V	Manufacturer	Omron Automation & Safety
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1206 pcs	Data sheet	Z-15GQA55-B5V.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Screw Terminal	Switch Function	On-Mom
Series	Z	Release Force	114gf
Pretravel	0.071" (1.8mm)	Packaging	Bulk
Overtravel	0.217" (5.5mm)	Other Names	Z-15GQA55-B5V-ND Z15GQA55B5V Z6287
Operating Temperature	-15°C ~ 80°C	Operating Position	0.859" (21.8mm)
Operating Force	540gf	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	10,000,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP62
Features	-	Electrical Life	500,000 Cycles
Differential Travel	0.002" (0.05mm)	Current Rating	15A (AC), 6A (DC)
Circuit	SPDT	Actuator Type	Overtravel Plunger
